Definition Type: ComplexType
Name: BatchEquipmentIDType
Namespace: http://www.wbf.org/xml/B2MML-V0401
Containing Schema: BatchML-V0401-BatchInformation.xsd
Abstract False
Documentation:

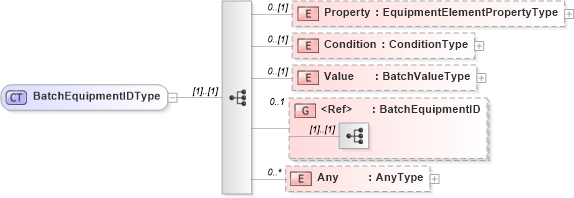

Collapse XSD Schema Diagram:
Drilldown into Any Drilldown into Value Drilldown into Condition Drilldown into PropertyXSD Diagram of BatchEquipmentIDType
Collapse XSD Schema Code:
<xsd:complexType name="BatchEquipmentIDType">
    <xsd:sequence>
        <xsd:element name="Property" type="EquipmentElementPropertyType" minOccurs="0" />
        <xsd:element name="Condition" type="ConditionType" minOccurs="0" />
        <xsd:element name="Value" type="BatchValueType" minOccurs="0" />
        <xsd:group ref="Extended:BatchEquipmentID" minOccurs="0" maxOccurs="1" />
        <xsd:element name="Any" type="AnyType" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Property b2mml:Property 0 (1)
Condition b2mml:Condition 0 (1)
Value b2mml:Value 0 (1)
Any b2mml:Any 0 unbounded
<xs:group> Extended:BatchEquipmentID 0 1
Collapse Derivation Tree:
Collapse References:
b2mml:EquipmentID, b2mml:EquipmentID
