Business To Manufacturing Markup Language Generated using Liquid XML Studio Developer Edition Liquid XML Studio Designer Edition 9.0.0.2715
Definition Type: Element
Name: Header
Namespace: http://www.wbf.org/xml/B2MML-V0401
Type: b2mml:HeaderType
Containing Schema: BatchML-V0401-BatchInformation.xsd
MinOccurs 0
MaxOccurs (1)
Abstract False
Documentation:
Collapse XSD Schema Diagram:

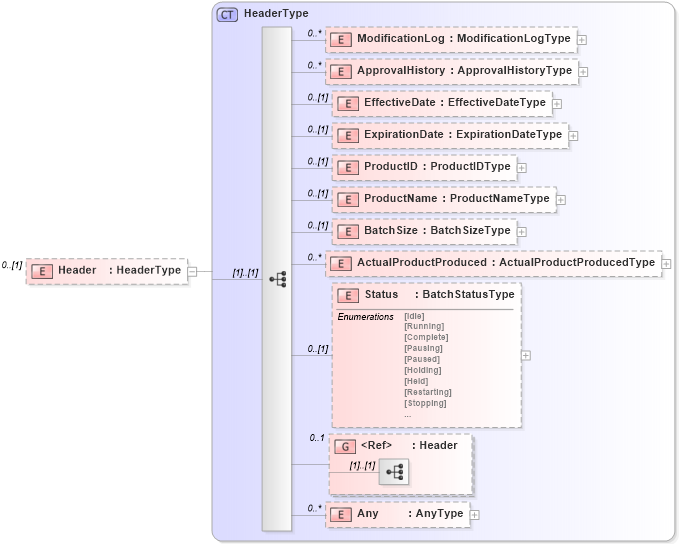

Drilldown into Any Drilldown into Status Drilldown into ActualProductProduced Drilldown into BatchSize Drilldown into ProductName Drilldown into ProductID Drilldown into ExpirationDate Drilldown into EffectiveDate Drilldown into ApprovalHistory Drilldown into ModificationLog Drilldown into HeaderTypeXSD Diagram of Header
Collapse XSD Schema Code:
<xsd:element name="Header" type="HeaderType" minOccurs="0" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ModificationLog b2mml:ModificationLog 0 unbounded
ApprovalHistory b2mml:ApprovalHistory 0 unbounded
EffectiveDate b2mml:EffectiveDate 0 (1)
ExpirationDate b2mml:ExpirationDate 0 (1)
ProductID b2mml:ProductID 0 (1)
ProductName b2mml:ProductName 0 (1)
BatchSize b2mml:BatchSize 0 (1)
ActualProductProduced b2mml:ActualProductProduced 0 unbounded
Status b2mml:Status 0 (1)
Any b2mml:Any 0 unbounded
<xs:group> Extended:Header 0 1
Collapse Derivation Tree:
Collapse Comments:
