Definition Type: Element
Name: MaterialProducedRequirement
Namespace: http://www.wbf.org/xml/B2MML-V0401
Type: b2mml:MaterialProducedRequirementType
Containing Schema: B2MML-V0401-ProductionSchedule.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract False
Documentation:

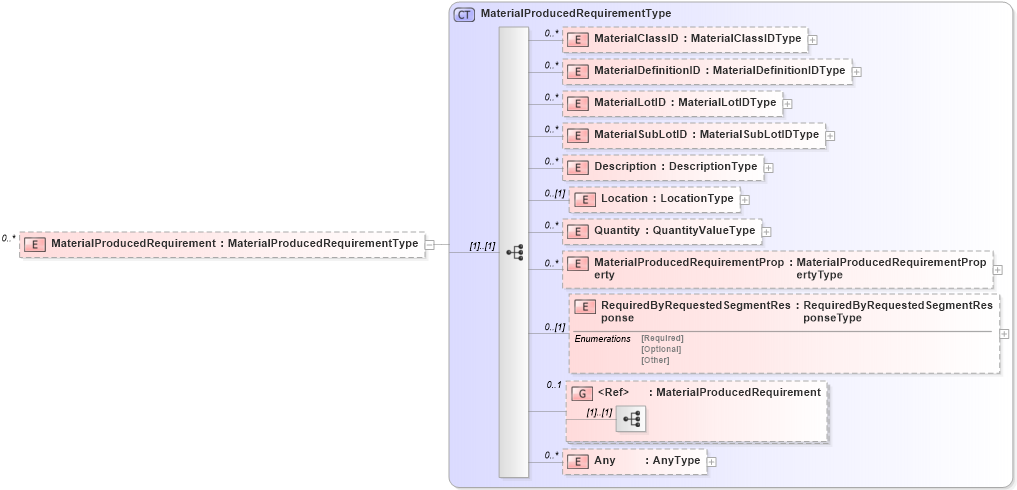

Collapse XSD Schema Diagram:
Drilldown into Any Drilldown into RequiredByRequestedSegmentResponse Drilldown into MaterialProducedRequirementProperty Drilldown into Quantity Drilldown into Location Drilldown into Description Drilldown into MaterialSubLotID Drilldown into MaterialLotID Drilldown into MaterialDefinitionID Drilldown into MaterialClassID Drilldown into MaterialProducedRequirementTypeXSD Diagram of MaterialProducedRequirement
Collapse XSD Schema Code:
<xsd:element name="MaterialProducedRequirement" type="MaterialProducedRequirementType" minOccurs="0" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
MaterialClassID b2mml:MaterialClassID 0 unbounded
MaterialDefinitionID b2mml:MaterialDefinitionID 0 unbounded
MaterialLotID b2mml:MaterialLotID 0 unbounded
MaterialSubLotID b2mml:MaterialSubLotID 0 unbounded
Description b2mml:Description 0 unbounded
Location b2mml:Location 0 (1)
Quantity b2mml:Quantity 0 unbounded
MaterialProducedRequirementProperty b2mml:MaterialProducedRequirementProperty 0 unbounded
RequiredByRequestedSegmentResponse b2mml:RequiredByRequestedSegmentResponse 0 (1)
Any b2mml:Any 0 unbounded
<xs:group> Extended:MaterialProducedRequirement 0 1
Collapse Derivation Tree:
Collapse Comments:
