Definition Type: Element
Name: MaterialSubLot
Namespace: http://www.wbf.org/xml/B2MML-V0401
Type: b2mml:MaterialSubLotType
Containing Schema: B2MML-V0401-Material.xsd
MinOccurs 1
MaxOccurs unbounded
Abstract False
Documentation:

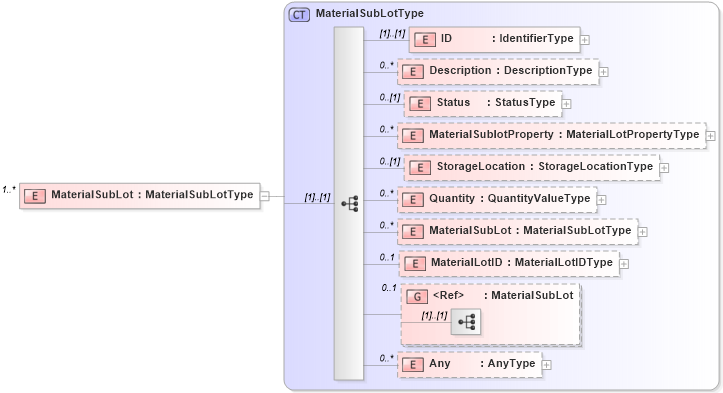

Collapse XSD Schema Diagram:
Drilldown into Any Drilldown into MaterialLotID Drilldown into MaterialSubLot Drilldown into Quantity Drilldown into StorageLocation Drilldown into MaterialSublotProperty Drilldown into Status Drilldown into Description Drilldown into ID Drilldown into MaterialSubLotTypeXSD Diagram of MaterialSubLot
Collapse XSD Schema Code:
<xsd:element name="MaterialSubLot" type="MaterialSubLotType" minOccurs="1" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID b2mml:ID (1) (1)
Description b2mml:Description 0 unbounded
Status b2mml:Status 0 (1)
MaterialSublotProperty b2mml:MaterialSublotProperty 0 unbounded
StorageLocation b2mml:StorageLocation 0 (1)
Quantity b2mml:Quantity 0 unbounded
MaterialSubLot b2mml:MaterialSubLot 0 unbounded
MaterialLotID b2mml:MaterialLotID 0 1
Any b2mml:Any 0 unbounded
<xs:group> Extended:MaterialSubLot 0 1
Collapse Derivation Tree:
Collapse Comments:
