Definition Type: Element
Name: PersonnelClassID
Namespace: http://www.wbf.org/xml/B2MML-V0401
Type: b2mml:PersonnelClassIDType
Containing Schema: B2MML-V0401-ProductDefinition.xsd
MinOccurs 0
MaxOccurs (1)
Abstract False
Documentation:

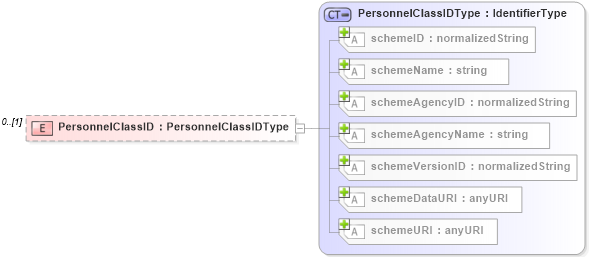

Collapse XSD Schema Diagram:
Drilldown into schemeURI Drilldown into schemeDataURI Drilldown into schemeVersionID Drilldown into schemeAgencyName Drilldown into schemeAgencyID Drilldown into schemeName Drilldown into schemeID Drilldown into IdentifierType Drilldown into PersonnelClassIDTypeXSD Diagram of PersonnelClassID
Collapse XSD Schema Code:
<xsd:element name="PersonnelClassID" type="PersonnelClassIDType" minOccurs="0" />
Collapse Child Attributes:
Name Type Default Value Use
schemeID schemeID Optional
schemeName schemeName Optional
schemeAgencyID schemeAgencyID Optional
schemeAgencyName schemeAgencyName Optional
schemeVersionID schemeVersionID Optional
schemeDataURI schemeDataURI Optional
schemeURI schemeURI Optional
Collapse Derivation Tree:
