Definition Type: ComplexType
Name: ProcedureChartElementType
Namespace: http://www.wbf.org/xml/B2MML-V0401
Containing Schema: BatchML-V0401-GeneralRecipe.xsd
Abstract False
Documentation:
Collapse XSD Schema Diagram:

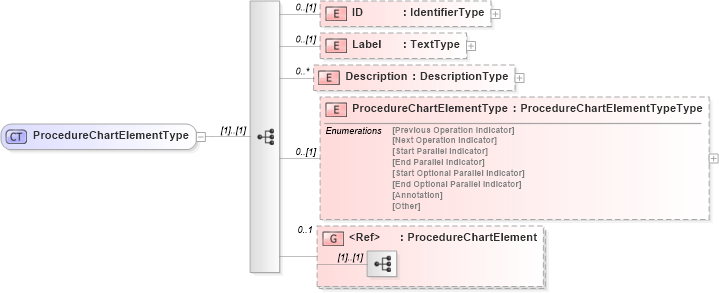

Drilldown into ProcedureChartElementType Drilldown into Description Drilldown into Label Drilldown into IDXSD Diagram of ProcedureChartElementType
Collapse XSD Schema Code:
<xsd:complexType name="ProcedureChartElementType">
    <xsd:sequence>
        <xsd:element name="ID" type="IdentifierType" minOccurs="0" />
        <xsd:element name="Label" type="TextType" minOccurs="0" />
        <xsd:element name="Description" type="DescriptionType" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="ProcedureChartElementType" type="ProcedureChartElementTypeType" minOccurs="0" />
        <xsd:group ref="Extended:ProcedureChartElement" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID b2mml:ID 0 (1)
Label b2mml:Label 0 (1)
Description b2mml:Description 0 unbounded
ProcedureChartElementType b2mml:ProcedureChartElementType 0 (1)
<xs:group> Extended:ProcedureChartElement 0 1
Collapse Derivation Tree:
Collapse References:
b2mml:ProcedureChartElement
Collapse Comments:
