Business To Manufacturing Markup Language Generated using Liquid XML Studio Developer Edition Liquid XML Studio Designer Edition 9.0.0.2715
Definition Type: ComplexType
Name: ProcessElementType1Type
Namespace: http://www.wbf.org/xml/B2MML-V0401
Type: CodeType
Containing Schema: BatchML-V0401-GeneralRecipe.xsd
Abstract False
Documentation:
Collapse XSD Schema Diagram:

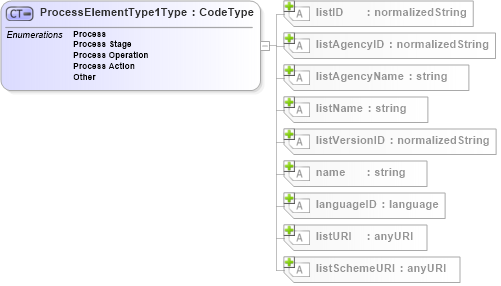

Drilldown into listSchemeURI Drilldown into listURI Drilldown into languageID Drilldown into name Drilldown into listVersionID Drilldown into listName Drilldown into listAgencyName Drilldown into listAgencyID Drilldown into listID Drilldown into CodeTypeXSD Diagram of ProcessElementType1Type
Collapse XSD Schema Code:
<xsd:complexType name="ProcessElementType1Type">
    <xsd:simpleContent>
        <xsd:restriction base="CodeType">
            <xsd:enumeration value="Process" />
            <xsd:enumeration value="Process Stage" />
            <xsd:enumeration value="Process Operation" />
            <xsd:enumeration value="Process Action" />
            <xsd:enumeration value="Other" />
        </xsd:restriction>
    </xsd:simpleContent>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
listID listID Optional
listAgencyID listAgencyID Optional
listAgencyName listAgencyName Optional
listName listName Optional
listVersionID listVersionID Optional
name name Optional
languageID languageID Optional
listURI listURI Optional
listSchemeURI listSchemeURI Optional
Collapse Derivation Tree:
Collapse References:
b2mml:ProcessElementTypeType
