Definition Type: Element
Name: ProductDefinition
Namespace: http://www.wbf.org/xml/B2MML-V0401
Type: b2mml:ProductDefinitionType
Containing Schema: B2MML-V0401-ProductDefinition.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract False
Documentation:

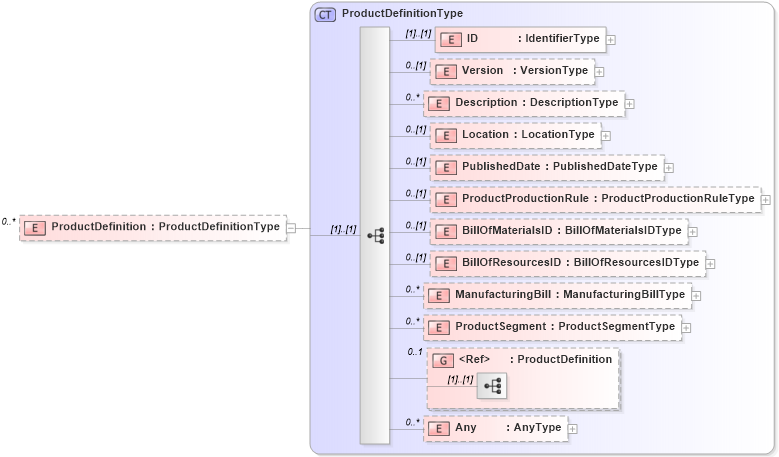

Collapse XSD Schema Diagram:
Drilldown into Any Drilldown into ProductSegment Drilldown into ManufacturingBill Drilldown into BillOfResourcesID Drilldown into BillOfMaterialsID Drilldown into ProductProductionRule Drilldown into PublishedDate Drilldown into Location Drilldown into Description Drilldown into Version Drilldown into ID Drilldown into ProductDefinitionTypeXSD Diagram of ProductDefinition
Collapse XSD Schema Code:
<xsd:element name="ProductDefinition" type="ProductDefinitionType" minOccurs="0" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID b2mml:ID (1) (1)
Version b2mml:Version 0 (1)
Description b2mml:Description 0 unbounded
Location b2mml:Location 0 (1)
PublishedDate b2mml:PublishedDate 0 (1)
ProductProductionRule b2mml:ProductProductionRule 0 (1)
BillOfMaterialsID b2mml:BillOfMaterialsID 0 (1)
BillOfResourcesID b2mml:BillOfResourcesID 0 (1)
ManufacturingBill b2mml:ManufacturingBill 0 unbounded
ProductSegment b2mml:ProductSegment 0 unbounded
Any b2mml:Any 0 unbounded
<xs:group> Extended:ProductDefinition 0 1
