Definition Type: Element
Name: ProductionSchedule
Namespace: http://www.wbf.org/xml/B2MML-V0401
Type: b2mml:ProductionScheduleType
Containing Schema: B2MML-V0401-ProductionSchedule.xsd
MinOccurs 1
MaxOccurs unbounded
Abstract False
Documentation:

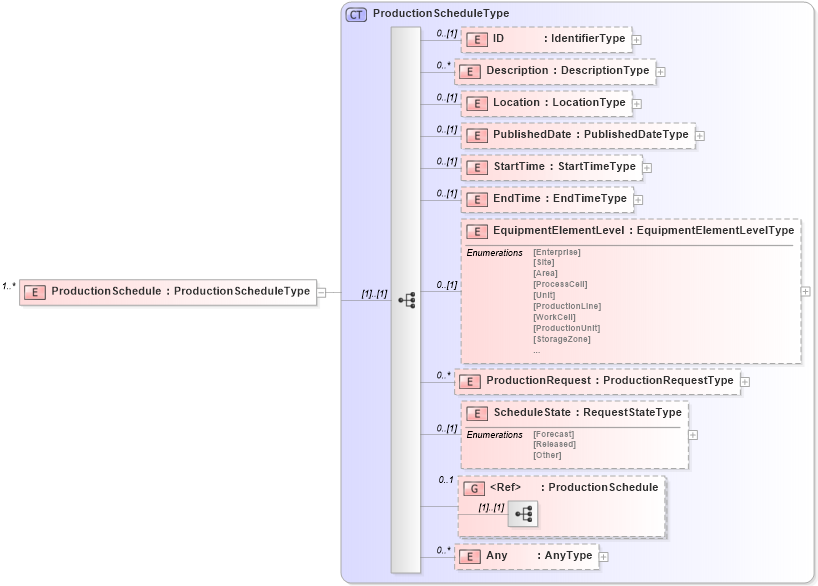

Collapse XSD Schema Diagram:
Drilldown into Any Drilldown into ScheduleState Drilldown into ProductionRequest Drilldown into EquipmentElementLevel Drilldown into EndTime Drilldown into StartTime Drilldown into PublishedDate Drilldown into Location Drilldown into Description Drilldown into ID Drilldown into ProductionScheduleTypeXSD Diagram of ProductionSchedule
Collapse XSD Schema Code:
<xsd:element name="ProductionSchedule" type="ProductionScheduleType" minOccurs="1" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID b2mml:ID 0 (1)
Description b2mml:Description 0 unbounded
Location b2mml:Location 0 (1)
PublishedDate b2mml:PublishedDate 0 (1)
StartTime b2mml:StartTime 0 (1)
EndTime b2mml:EndTime 0 (1)
EquipmentElementLevel b2mml:EquipmentElementLevel 0 (1)
ProductionRequest b2mml:ProductionRequest 0 unbounded
ScheduleState b2mml:ScheduleState 0 (1)
Any b2mml:Any 0 unbounded
<xs:group> Extended:ProductionSchedule 0 1
Collapse Derivation Tree:
Collapse Comments:
