Definition Type: ComplexType
Name: TestedEquipmentClassPropertyType
Namespace: http://www.wbf.org/xml/B2MML-V0401
Containing Schema: B2MML-V0401-Equipment.xsd
Abstract False
Documentation:
Collapse XSD Schema Diagram:

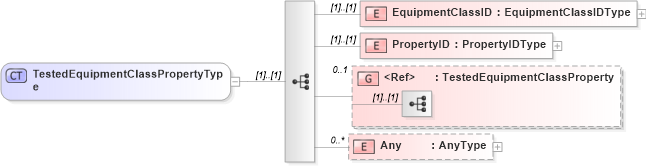

Drilldown into Any Drilldown into PropertyID Drilldown into EquipmentClassIDXSD Diagram of TestedEquipmentClassPropertyType
Collapse XSD Schema Code:
<xsd:complexType name="TestedEquipmentClassPropertyType">
    <xsd:sequence>
        <xsd:element name="EquipmentClassID" type="EquipmentClassIDType" />
        <xsd:element name="PropertyID" type="PropertyIDType" />
        <xsd:group ref="Extended:TestedEquipmentClassProperty" minOccurs="0" maxOccurs="1" />
        <!-- Added in V04 - The Any element should not be used in new schemas.  This extension schema should be used to add user defined

     elements to B2MML documents.  In a future release the Any element will be removed from B2MML.  -->
        <xsd:element name="Any" type="AnyType" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
EquipmentClassID b2mml:EquipmentClassID (1) (1)
PropertyID b2mml:PropertyID (1) (1)
Any b2mml:Any 0 unbounded
<xs:group> Extended:TestedEquipmentClassProperty 0 1
Collapse Derivation Tree:
Collapse References:
b2mml:TestedEquipmentClassProperty
