Business To Manufacturing Markup Language Generated using Liquid XML Studio Developer Edition Liquid XML Studio Designer Edition 9.0.0.2715
Definition Type: ComplexType
Name: TransApplicationAreaType
Namespace: http://www.wbf.org/xml/B2MML-V0401
Containing Schema: B2MML-V0401-Common.xsd
Abstract False
Documentation:

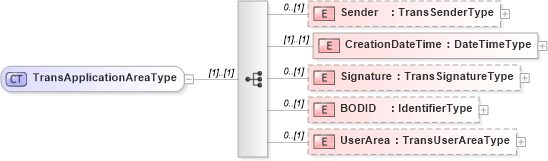

Collapse XSD Schema Diagram:
Drilldown into UserArea Drilldown into BODID Drilldown into Signature Drilldown into CreationDateTime Drilldown into SenderXSD Diagram of TransApplicationAreaType
Collapse XSD Schema Code:
<xsd:complexType name="TransApplicationAreaType">
    <xsd:sequence>
        <xsd:element name="Sender" type="TransSenderType" minOccurs="0" />
        <xsd:element name="CreationDateTime" type="DateTimeType" />
        <xsd:element name="Signature" type="TransSignatureType" minOccurs="0" />
        <xsd:element name="BODID" type="IdentifierType" minOccurs="0" />
        <xsd:element name="UserArea" type="TransUserAreaType" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Sender b2mml:Sender 0 (1)
CreationDateTime b2mml:CreationDateTime (1) (1)
Signature b2mml:Signature 0 (1)
BODID b2mml:BODID 0 (1)
UserArea b2mml:UserArea 0 (1)
Collapse Derivation Tree:
Collapse References:
b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationAreab2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:ApplicationArea, b2mml:OriginalApplicationArea, b2mml:OriginalApplicationArea, b2mml:OriginalApplicationArea, b2mml:OriginalApplicationArea, b2mml:OriginalApplicationArea,
Collapse Comments:
