Definition Type: Element
Name: Transition
Namespace: http://www.wbf.org/xml/B2MML-V0401
Type: b2mml:TransitionType
Containing Schema: BatchML-V0401-BatchInformation.xsd
Abstract False
Documentation:

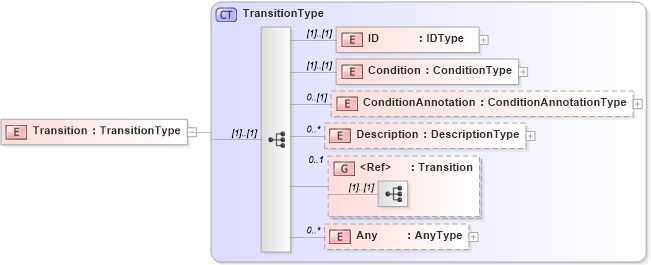

Collapse XSD Schema Diagram:
Drilldown into Any Drilldown into Description Drilldown into ConditionAnnotation Drilldown into Condition Drilldown into ID Drilldown into TransitionTypeXSD Diagram of Transition
Collapse XSD Schema Code:
<xsd:element name="Transition" type="TransitionType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID b2mml:ID (1) (1)
Condition b2mml:Condition (1) (1)
ConditionAnnotation b2mml:ConditionAnnotation 0 (1)
Description b2mml:Description 0 unbounded
Any b2mml:Any 0 unbounded
<xs:group> Extended:Transition 0 1
Collapse Derivation Tree:
