Definition Type: ComplexType
Name: TransitionType
Namespace: http://www.wbf.org/xml/B2MML-V0401
Containing Schema: BatchML-V0401-BatchInformation.xsd
Abstract False
Documentation:
Collapse XSD Schema Diagram:

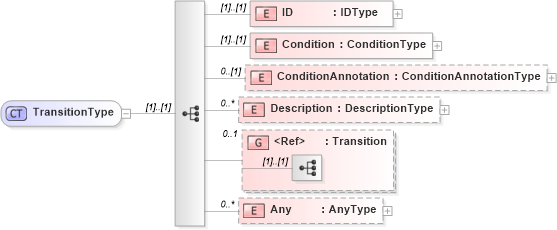

Drilldown into Any Drilldown into Description Drilldown into ConditionAnnotation Drilldown into Condition Drilldown into IDXSD Diagram of TransitionType
Collapse XSD Schema Code:
<xsd:complexType name="TransitionType">
    <xsd:sequence>
        <xsd:element name="ID" type="IDType" />
        <xsd:element name="Condition" type="ConditionType" />
        <xsd:element name="ConditionAnnotation" type="ConditionAnnotationType" minOccurs="0" />
        <xsd:element name="Description" type="DescriptionType" minOccurs="0" maxOccurs="unbounded" />
        <xsd:group ref="Extended:Transition" minOccurs="0" maxOccurs="1" />
        <xsd:element name="Any" type="AnyType" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID b2mml:ID (1) (1)
Condition b2mml:Condition (1) (1)
ConditionAnnotation b2mml:ConditionAnnotation 0 (1)
Description b2mml:Description 0 unbounded
Any b2mml:Any 0 unbounded
<xs:group> Extended:Transition 0 1
Collapse Derivation Tree:
Collapse References:
b2mml:Transition, b2mml:Transition
