Definition Type: ComplexType
Name: TradeNotFound
Namespace: http://www.fpml.org/2003/FpML-4-0
Type: nsA:ResponseMessage
Containing Schema: fpml-msg-4-0.xsd
Abstract False
Documentation:
A type defining the content model of a response message generated when an operation as requested on a trade unknown to the service.

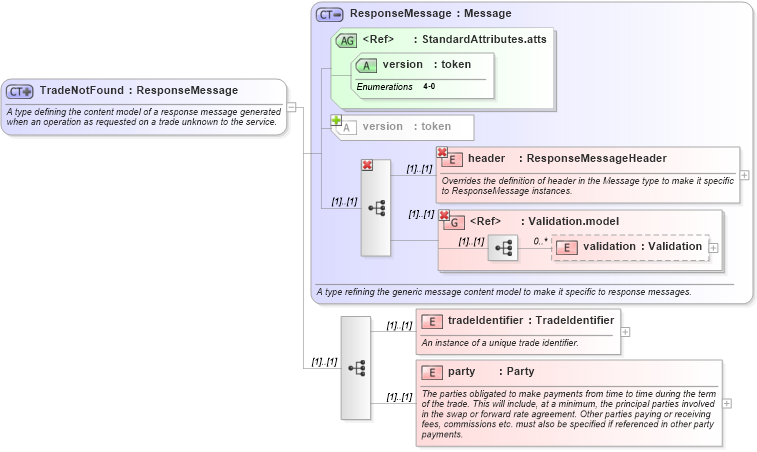

Collapse XSD Schema Diagram:
Drilldown into party Drilldown into tradeIdentifier Drilldown into version Drilldown into validation Drilldown into header Drilldown into validation Drilldown into header Drilldown into version Drilldown into Document Drilldown into Message Drilldown into ResponseMessageXSD Diagram of TradeNotFound
Collapse XSD Schema Code:
<xsd:complexType name="TradeNotFound">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type defining the content model of a response message generated when an operation as requested on a trade unknown to the service.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="ResponseMessage">
            <xsd:sequence>
                <xsd:element name="tradeIdentifier" type="TradeIdentifier">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">An instance of a unique trade identifier.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="party" type="Party">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The parties obligated to make payments from time to time during the term of the trade. This will include, at a minimum, the principal parties involved in the swap or forward rate agreement. Other parties paying or receiving fees, commissions etc. must also be specified if referenced in other party payments.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
header nsA:header (1) (1)
validation nsA:validation 0 unbounded
header nsA:header (1) (1)
tradeIdentifier nsA:tradeIdentifier (1) (1)
party nsA:party (1) (1)
<xs:group> nsA:Validation.model (1) (1)
<xs:group> nsA:Validation.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
version nsA:version Required
Collapse Derivation Tree:
