Definition Type: ComplexType
Name: EquitySwapTransactionSupplement
Namespace: http://www.fpml.org/2008/FpML-4-5
Type: fpml:ReturnSwapBase
Containing Schema: fpml-return-swaps-4-5.xsd
Abstract False
Documentation:
A type for defining Equity Swap Transaction Supplement

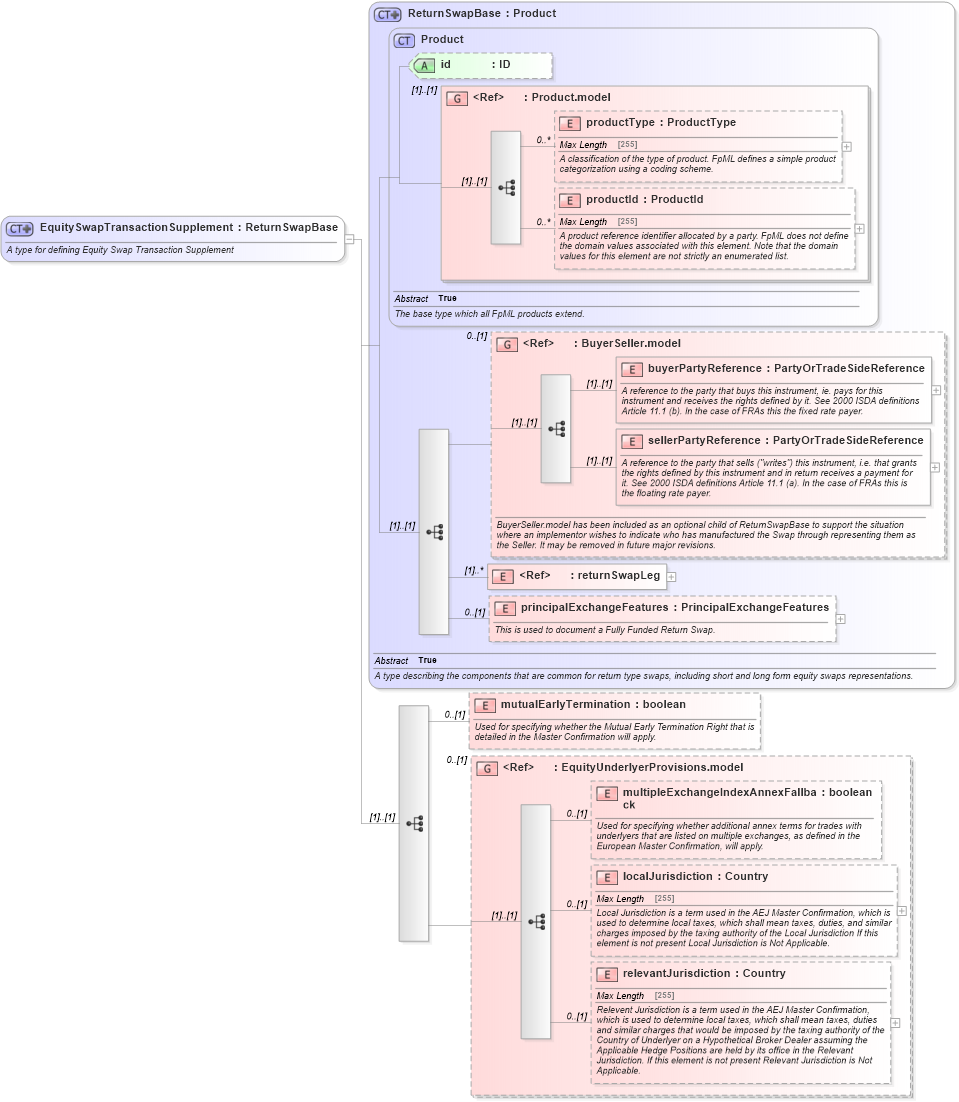

Collapse XSD Schema Diagram:
Drilldown into relevantJurisdiction Drilldown into localJurisdiction Drilldown into multipleExchangeIndexAnnexFallback Drilldown into mutualEarlyTermination Drilldown into principalExchangeFeatures Drilldown into returnSwapLeg Drilldown into sellerPartyReference Drilldown into buyerPartyReference Drilldown into id Drilldown into productId Drilldown into productType Drilldown into Product Drilldown into ReturnSwapBaseXSD Diagram of EquitySwapTransactionSupplement
Collapse XSD Schema Code:
<xsd:complexType name="EquitySwapTransactionSupplement">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type for defining Equity Swap Transaction Supplement</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="ReturnSwapBase">
            <xsd:sequence>
                <xsd:element name="mutualEarlyTermination" type="xsd:boolean" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">Used for specifying whether the Mutual Early Termination Right that is detailed in the Master Confirmation will apply.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:group ref="EquityUnderlyerProvisions.model" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
productType fpml:productType 0 unbounded
productId fpml:productId 0 unbounded
buyerPartyReference fpml:buyerPartyReference (1) (1)
sellerPartyReference fpml:sellerPartyReference (1) (1)
returnSwapLeg fpml:returnSwapLeg (1) unbounded
principalExchangeFeatures fpml:principalExchangeFeatures 0 (1)
mutualEarlyTermination fpml:mutualEarlyTermination 0 (1)
multipleExchangeIndexAnnexFallback fpml:multipleExchangeIndexAnnexFallback 0 (1)
localJurisdiction fpml:localJurisdiction 0 (1)
relevantJurisdiction fpml:relevantJurisdiction 0 (1)
<xs:group> fpml:BuyerSeller.model 0 (1)
<xs:group> fpml:EquityUnderlyerProvisions.model 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id fpml:id (Optional)
Collapse Derivation Tree:
Collapse References:
fpml:equitySwapTransactionSupplement
