Definition Type: Element
Name: exercise
Namespace: http://www.fpml.org/2008/FpML-4-5
Type: fpml:CommodityExercise
Containing Schema: fpml-com-4-5.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract False
Documentation:
The parameters for defining how the commodity option can be exercised and how it is settled.

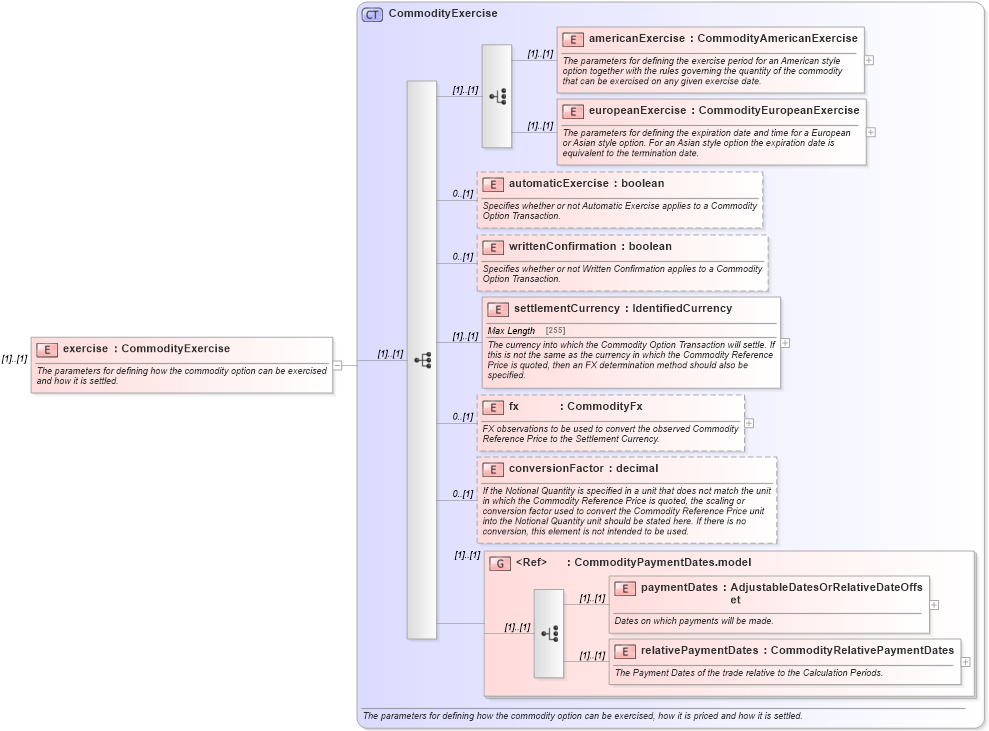

Collapse XSD Schema Diagram:
Drilldown into relativePaymentDates Drilldown into paymentDates Drilldown into conversionFactor Drilldown into fx Drilldown into settlementCurrency Drilldown into writtenConfirmation Drilldown into automaticExercise Drilldown into europeanExercise Drilldown into americanExercise Drilldown into CommodityExerciseXSD Diagram of exercise
Collapse XSD Schema Code:
<xsd:element name="exercise" type="CommodityExercise">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The parameters for defining how the commodity option can be exercised and how it is settled.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
americanExercise fpml:americanExercise (1) (1)
europeanExercise fpml:europeanExercise (1) (1)
automaticExercise fpml:automaticExercise 0 (1)
writtenConfirmation fpml:writtenConfirmation 0 (1)
settlementCurrency fpml:settlementCurrency (1) (1)
fx fpml:fx 0 (1)
conversionFactor fpml:conversionFactor 0 (1)
paymentDates fpml:paymentDates (1) (1)
relativePaymentDates fpml:relativePaymentDates (1) (1)
<xs:group> fpml:CommodityPaymentDates.model (1) (1)
Collapse Derivation Tree:
