Financial products Markup Language (FpML®) Generated using Liquid XML Studio Developer Edition Liquid XML Studio Designer Edition 9.0.0.2715
Definition Type: Element
Name: quote
Namespace: http://www.fpml.org/2008/FpML-4-5
Type: fpml:BasicQuotation
Containing Schema: fpml-riskdef-4-5.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract False
Documentation:
One or more numerical measures relating to the asset, possibly together with sensitivities of that measure to pricing inputs

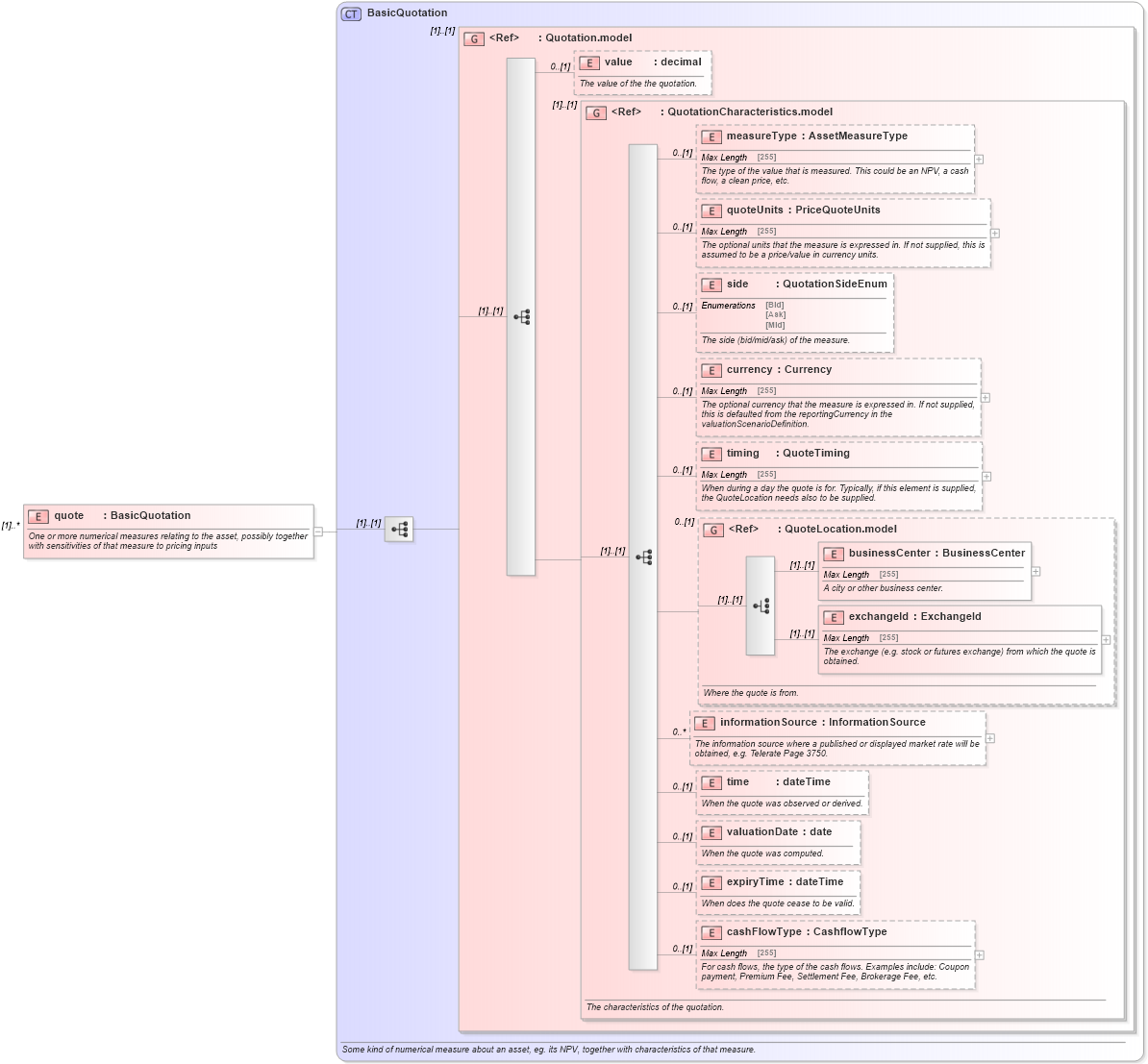

Collapse XSD Schema Diagram:
Drilldown into cashFlowType Drilldown into expiryTime Drilldown into valuationDate Drilldown into time Drilldown into informationSource Drilldown into exchangeId Drilldown into businessCenter Drilldown into timing Drilldown into currency Drilldown into side Drilldown into quoteUnits Drilldown into measureType Drilldown into value Drilldown into BasicQuotationXSD Diagram of quote
Collapse XSD Schema Code:
<xsd:element name="quote" type="BasicQuotation" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">One or more numerical measures relating to the asset, possibly together with sensitivities of that measure to pricing inputs</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
value fpml:value 0 (1)
measureType fpml:measureType 0 (1)
quoteUnits fpml:quoteUnits 0 (1)
side fpml:side 0 (1)
currency fpml:currency 0 (1)
timing fpml:timing 0 (1)
businessCenter fpml:businessCenter (1) (1)
exchangeId fpml:exchangeId (1) (1)
informationSource fpml:informationSource 0 unbounded
time fpml:time 0 (1)
valuationDate fpml:valuationDate 0 (1)
expiryTime fpml:expiryTime 0 (1)
cashFlowType fpml:cashFlowType 0 (1)
<xs:group> fpml:Quotation.model (1) (1)
<xs:group> fpml:QuotationCharacteristics.model (1) (1)
<xs:group> fpml:QuoteLocation.model 0 (1)
Collapse Derivation Tree:
