Definition Type: Element
Name: relevantUnderlyingDate
Namespace: http://www.fpml.org/2008/FpML-4-5
Type: fpml:AdjustableOrRelativeDates
Containing Schema: fpml-shared-4-5.xsd
MinOccurs 0
MaxOccurs (1)
Abstract False
Documentation:
The daye on the underlying set by the exercise of an option. What this date is depends on the option (e.g. in a swaption it is the effective date, in an extendible/cancelable provision it is the termination date).

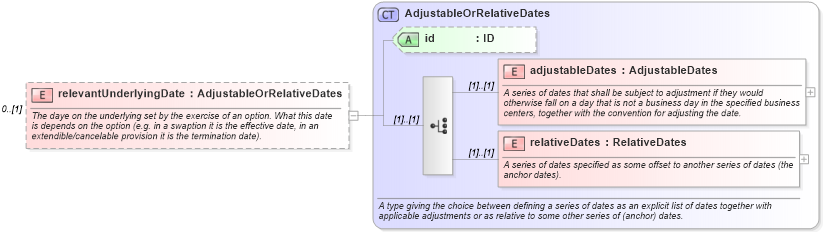

Collapse XSD Schema Diagram:
Drilldown into id Drilldown into relativeDates Drilldown into adjustableDates Drilldown into AdjustableOrRelativeDatesXSD Diagram of relevantUnderlyingDate
Collapse XSD Schema Code:
<xsd:element name="relevantUnderlyingDate" type="AdjustableOrRelativeDates" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The daye on the underlying set by the exercise of an option. What this date is depends on the option (e.g. in a swaption it is the effective date, in an extendible/cancelable provision it is the termination date).</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
adjustableDates fpml:adjustableDates (1) (1)
relativeDates fpml:relativeDates (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id fpml:id (Optional)
Collapse Derivation Tree:
Collapse Comments:
