Definition Type: Element
Name: simpleIrSwap
Namespace: http://www.fpml.org/2008/FpML-4-5
Type: fpml:SimpleIRSwap
Containing Schema: fpml-asset-4-5.xsd
Abstract False
Documentation:
Defines a simple underlying asset that is a swap.

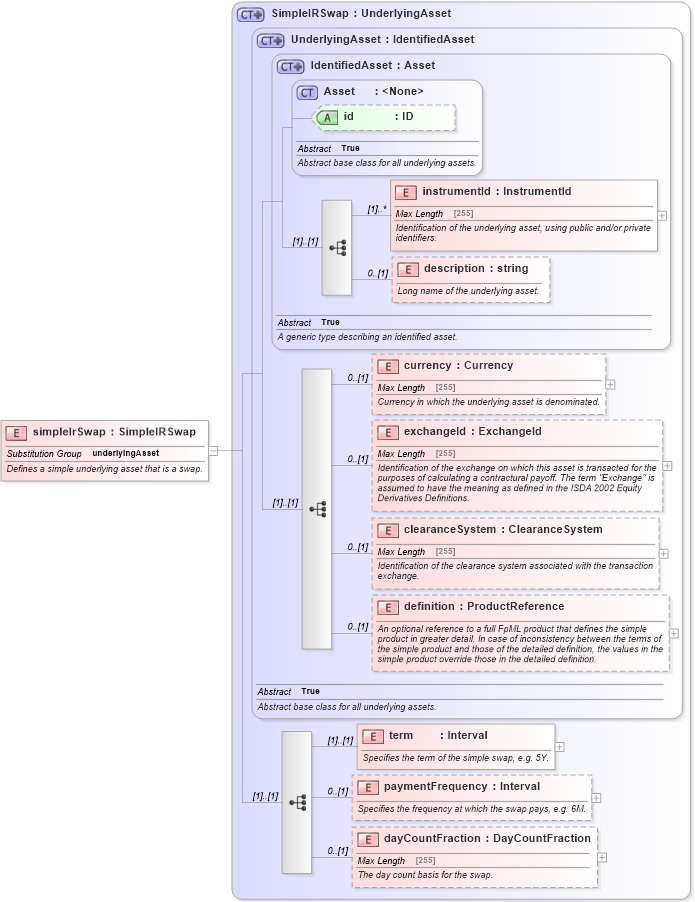

Collapse XSD Schema Diagram:
Drilldown into dayCountFraction Drilldown into paymentFrequency Drilldown into term Drilldown into definition Drilldown into clearanceSystem Drilldown into exchangeId Drilldown into currency Drilldown into description Drilldown into instrumentId Drilldown into id Drilldown into Asset Drilldown into IdentifiedAsset Drilldown into UnderlyingAsset Drilldown into SimpleIRSwapXSD Diagram of simpleIrSwap
Collapse XSD Schema Code:
<xsd:element name="simpleIrSwap" type="SimpleIRSwap" substitutionGroup="underlyingAsset">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Defines a simple underlying asset that is a swap.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
instrumentId fpml:instrumentId (1) unbounded
description fpml:description 0 (1)
currency fpml:currency 0 (1)
exchangeId fpml:exchangeId 0 (1)
clearanceSystem fpml:clearanceSystem 0 (1)
definition fpml:definition 0 (1)
term fpml:term (1) (1)
paymentFrequency fpml:paymentFrequency 0 (1)
dayCountFraction fpml:dayCountFraction 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id fpml:id (Optional)
Collapse Derivation Tree:
Collapse Comments:
