Financial products Markup Language (FpML®) Generated using Liquid XML Studio Developer Edition Liquid XML Studio Designer Edition 9.0.0.2773
Definition Type: ComplexType
Name: Message
Namespace: http://www.fpml.org/FpML-5-0/confirmation
Type: fpml:Document
Containing Schema: fpml-msg-5-0.xsd
Abstract True
Documentation:
A type defining the basic structure of all FpML messages which is refined by its derived types.

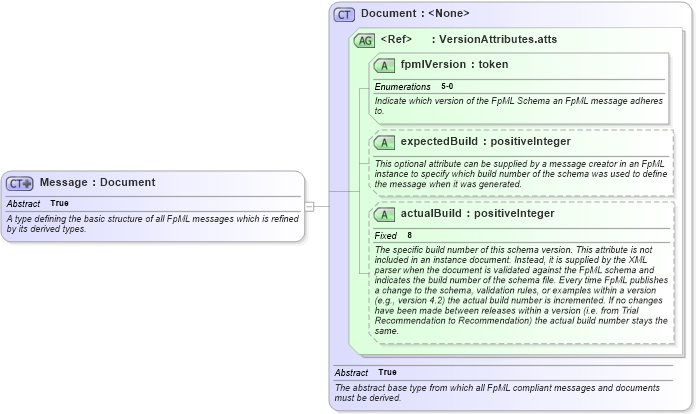

Collapse XSD Schema Diagram:
Drilldown into actualBuild Drilldown into expectedBuild Drilldown into fpmlVersion Drilldown into DocumentXSD Diagram of Message
Collapse XSD Schema Code:
<xsd:complexType name="Message" abstract="true">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type defining the basic structure of all FpML messages which is refined by its derived types.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="Document" />
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
fpmlVersion fpml:fpmlVersion Required
expectedBuild fpml:expectedBuild (Optional)
actualBuild fpml:actualBuild (Optional)
Collapse Derivation Tree:
Collapse References:
fpml:NotificationMessage, fpml:RequestMessage, fpml:ResponseMessage
Collapse Comments:
