Definition Type: ComplexType
Name: MessageRejected
Namespace: http://www.fpml.org/FpML-5-0/confirmation
Type: fpml:NotificationMessage
Containing Schema: fpml-msg-5-0.xsd
Abstract False
Documentation:
A type defining the content for a standard message sent when a recipient cannot interpret or process an earlier message.

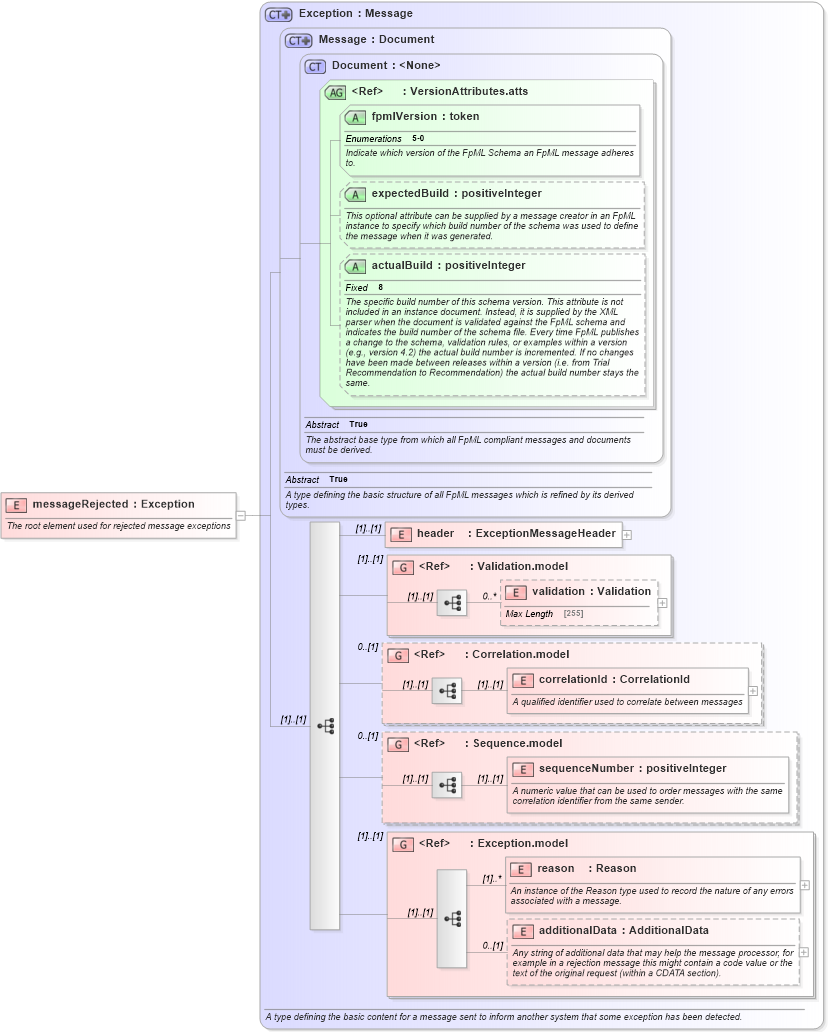

Collapse XSD Schema Diagram:
Drilldown into additionalData Drilldown into reason Drilldown into validation Drilldown into header Drilldown into actualBuild Drilldown into expectedBuild Drilldown into fpmlVersion Drilldown into Document Drilldown into Message Drilldown into NotificationMessageXSD Diagram of MessageRejected
Collapse XSD Schema Code:
<xsd:complexType name="MessageRejected">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type defining the content for a standard message sent when a recipient cannot interpret or process an earlier message.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="NotificationMessage">
            <xsd:sequence>
                <xsd:group ref="Exception.model" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
header fpml:header (1) (1)
validation fpml:validation 0 unbounded
reason fpml:reason (1) unbounded
additionalData fpml:additionalData 0 (1)
<xs:group> fpml:Validation.model (1) (1)
<xs:group> fpml:Exception.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
fpmlVersion fpml:fpmlVersion Required
expectedBuild fpml:expectedBuild (Optional)
actualBuild fpml:actualBuild (Optional)
Collapse Derivation Tree:
Collapse References:
fpml:messageRejected
