Health Level Seven (HL7) Generated using Liquid XML Studio Developer Edition Liquid XML Studio Designer Edition 9.0.0.2773
Definition Type: Element
Name: ADT_A03
Namespace: urn:hl7-org:v2xml
Type: nsA:ADT_A03.CONTENT
Containing Schema: ADT_A03.xsd
Abstract False
Documentation:
<top xmlns="urn:com.sun:encoder">true</top>

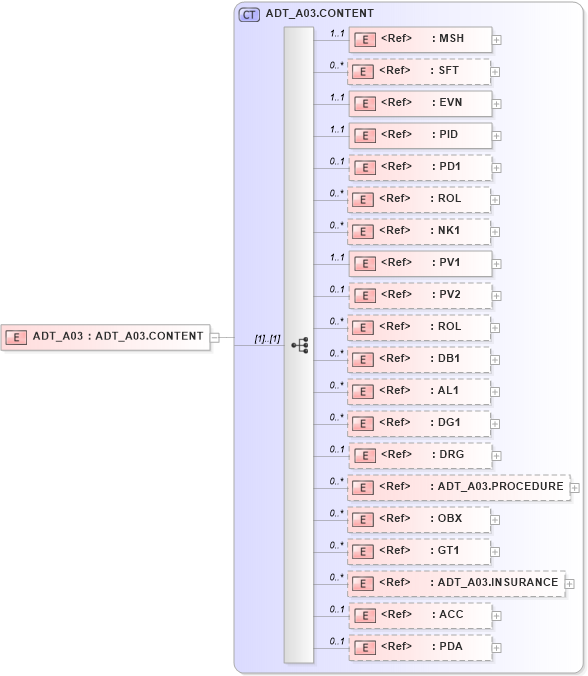

Collapse XSD Schema Diagram:
Drilldown into PDA Drilldown into ACC Drilldown into ADT_A03.INSURANCE Drilldown into GT1 Drilldown into OBX Drilldown into ADT_A03.PROCEDURE Drilldown into DRG Drilldown into DG1 Drilldown into AL1 Drilldown into DB1 Drilldown into ROL Drilldown into PV2 Drilldown into PV1 Drilldown into NK1 Drilldown into ROL Drilldown into PD1 Drilldown into PID Drilldown into EVN Drilldown into SFT Drilldown into MSH Drilldown into ADT_A03.CONTENTXSD Diagram of ADT_A03
Collapse XSD Schema Code:
<xsd:element name="ADT_A03" type="ADT_A03.CONTENT">
    <xsd:annotation>
        <xsd:appinfo source="urn:com.sun:encoder">
            <top xmlns="urn:com.sun:encoder">true</top>
        </xsd:appinfo>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
MSH nsA:MSH 1 1
SFT nsA:SFT 0 unbounded
EVN nsA:EVN 1 1
PID nsA:PID 1 1
PD1 nsA:PD1 0 1
ROL nsA:ROL 0 unbounded
NK1 nsA:NK1 0 unbounded
PV1 nsA:PV1 1 1
PV2 nsA:PV2 0 1
ROL nsA:ROL 0 unbounded
DB1 nsA:DB1 0 unbounded
AL1 nsA:AL1 0 unbounded
DG1 nsA:DG1 0 unbounded
DRG nsA:DRG 0 1
ADT_A03.PROCEDURE nsA:ADT_A03.PROCEDURE 0 unbounded
OBX nsA:OBX 0 unbounded
GT1 nsA:GT1 0 unbounded
ADT_A03.INSURANCE nsA:ADT_A03.INSURANCE 0 unbounded
ACC nsA:ACC 0 1
PDA nsA:PDA 0 1
Collapse Derivation Tree:
Collapse References:
nsA:ADT_A03
Collapse Comments:
