Definition Type: ComplexType
Name: ADT_A06.CONTENT
Namespace: urn:hl7-org:v2xml
Containing Schema: ADT_A06.xsd
Abstract False
Documentation:

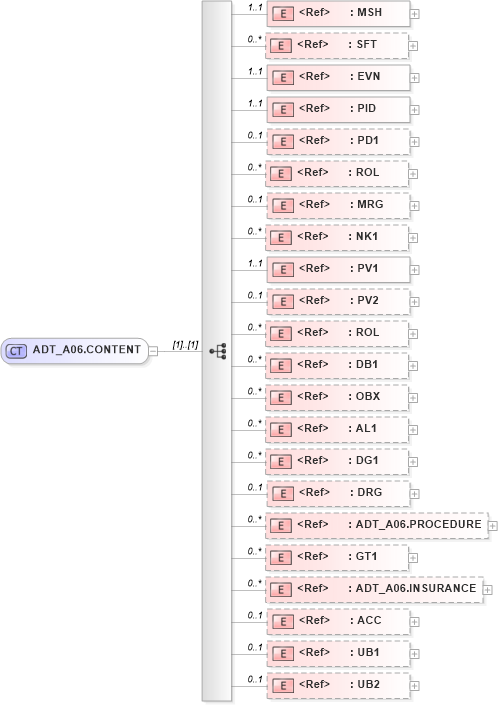

Collapse XSD Schema Diagram:
Drilldown into UB2 Drilldown into UB1 Drilldown into ACC Drilldown into ADT_A06.INSURANCE Drilldown into GT1 Drilldown into ADT_A06.PROCEDURE Drilldown into DRG Drilldown into DG1 Drilldown into AL1 Drilldown into OBX Drilldown into DB1 Drilldown into ROL Drilldown into PV2 Drilldown into PV1 Drilldown into NK1 Drilldown into MRG Drilldown into ROL Drilldown into PD1 Drilldown into PID Drilldown into EVN Drilldown into SFT Drilldown into MSHXSD Diagram of ADT_A06.CONTENT
Collapse XSD Schema Code:
<xsd:complexType name="ADT_A06.CONTENT">
    <xsd:sequence>
        <xsd:element ref="MSH" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="SFT" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="EVN" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="PID" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="PD1" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ROL" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="MRG" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="NK1" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="PV1" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="PV2" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ROL" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="DB1" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="OBX" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="AL1" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="DG1" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="DRG" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ADT_A06.PROCEDURE" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="GT1" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ADT_A06.INSURANCE" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ACC" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="UB1" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="UB2" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
MSH nsA:MSH 1 1
SFT nsA:SFT 0 unbounded
EVN nsA:EVN 1 1
PID nsA:PID 1 1
PD1 nsA:PD1 0 1
ROL nsA:ROL 0 unbounded
MRG nsA:MRG 0 1
NK1 nsA:NK1 0 unbounded
PV1 nsA:PV1 1 1
PV2 nsA:PV2 0 1
ROL nsA:ROL 0 unbounded
DB1 nsA:DB1 0 unbounded
OBX nsA:OBX 0 unbounded
AL1 nsA:AL1 0 unbounded
DG1 nsA:DG1 0 unbounded
DRG nsA:DRG 0 1
ADT_A06.PROCEDURE nsA:ADT_A06.PROCEDURE 0 unbounded
GT1 nsA:GT1 0 unbounded
ADT_A06.INSURANCE nsA:ADT_A06.INSURANCE 0 unbounded
ACC nsA:ACC 0 1
UB1 nsA:UB1 0 1
UB2 nsA:UB2 0 1
Collapse Derivation Tree:
Collapse References:
nsA:ADT_A06
