Documentation for OASIS Web Services Notification (WSN) TC
Definition Type: Element
Name: GetMessages
Namespace: http://docs.oasis-open.org/wsn/b-2
Containing Schema: b-2.xsd
Abstract

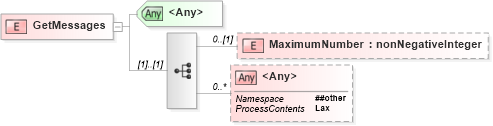

Collapse XSD Schema Diagram:
Drilldown into MaximumNumber in schema b-2_xsdXSD Diagram of GetMessages in schema b-2_xsd (OASIS Web Services Notification (WSN) TC)
Collapse XSD Schema Code:
<xsd:element name="GetMessages">
    <xsd:complexType>
        <xsd:sequence>
            <xsd:element name="MaximumNumber" type="xsd:nonNegativeInteger" minOccurs="0" />
            <xsd:any namespace="##other" processContents="lax" minOccurs="0" maxOccurs="unbounded" />
        </xsd:sequence>
        <xsd:anyAttribute />
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
MaximumNumber wsn-b:MaximumNumber 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
<anyAttribute>
