Definition Type: ComplexType
Name: NotificationMessageHolderType
Namespace: http://docs.oasis-open.org/wsn/b-2
Containing Schema: b-2.xsd
Abstract
Collapse XSD Schema Diagram:

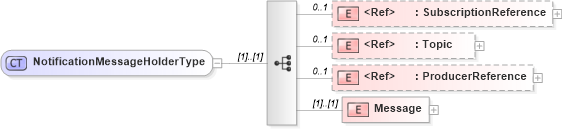

Drilldown into Message in schema b-2_xsd Drilldown into ProducerReference in schema b-2_xsd Drilldown into Topic in schema b-2_xsd Drilldown into SubscriptionReference in schema b-2_xsdXSD Diagram of NotificationMessageHolderType in schema b-2_xsd (OASIS Web Services Notification (WSN) TC)
Collapse XSD Schema Code:
<xsd:complexType name="NotificationMessageHolderType">
    <xsd:sequence>
        <xsd:element ref="wsnt:SubscriptionReference" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="wsnt:Topic" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="wsnt:ProducerReference" minOccurs="0" maxOccurs="1" />
        <xsd:element name="Message">
            <xsd:complexType>
                <xsd:sequence>
                    <xsd:any namespace="##any" processContents="lax" minOccurs="1" maxOccurs="1" />
                </xsd:sequence>
            </xsd:complexType>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
SubscriptionReference wsn-b:SubscriptionReference 0 1
Topic wsn-b:Topic 0 1
ProducerReference wsn-b:ProducerReference 0 1
Message wsn-b:Message (1) (1)
Collapse Derivation Tree:
Collapse References:
wsn-b:NotificationMessage
