Definition Type: Element
Name: ACCTINFO
Namespace: http://ofx.net/types/2003/04
Type: ofx:AccountInfo
Containing Schema: OFX_Common.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract False
Documentation:
Collapse XSD Schema Diagram:

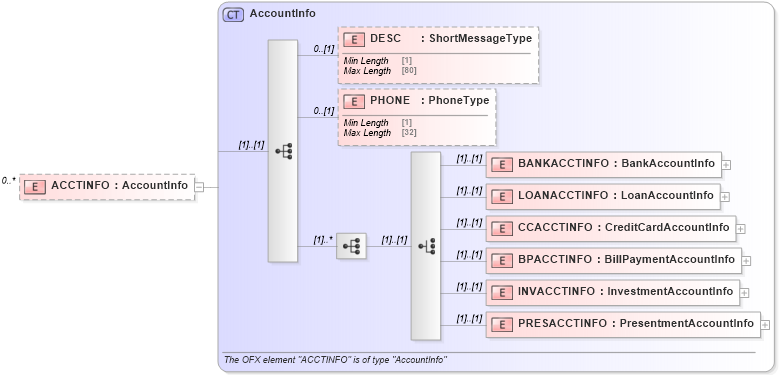

Drilldown into PRESACCTINFO Drilldown into INVACCTINFO Drilldown into BPACCTINFO Drilldown into CCACCTINFO Drilldown into LOANACCTINFO Drilldown into BANKACCTINFO Drilldown into PHONE Drilldown into DESC Drilldown into AccountInfoXSD Diagram of ACCTINFO
Collapse XSD Schema Code:
<xsd:element name="ACCTINFO" type="ofx:AccountInfo" minOccurs="0" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DESC ofx:DESC 0 (1)
PHONE ofx:PHONE 0 (1)
BANKACCTINFO ofx:BANKACCTINFO (1) (1)
LOANACCTINFO ofx:LOANACCTINFO (1) (1)
CCACCTINFO ofx:CCACCTINFO (1) (1)
BPACCTINFO ofx:BPACCTINFO (1) (1)
INVACCTINFO ofx:INVACCTINFO (1) (1)
PRESACCTINFO ofx:PRESACCTINFO (1) (1)
