Definition Type: Element
Name: BANKACCTTO
Namespace: http://ofx.net/types/2003/04
Type: ofx:BankAccount
Containing Schema: OFX_BillPay.xsd
MinOccurs 0
MaxOccurs 1
Abstract False
Documentation:

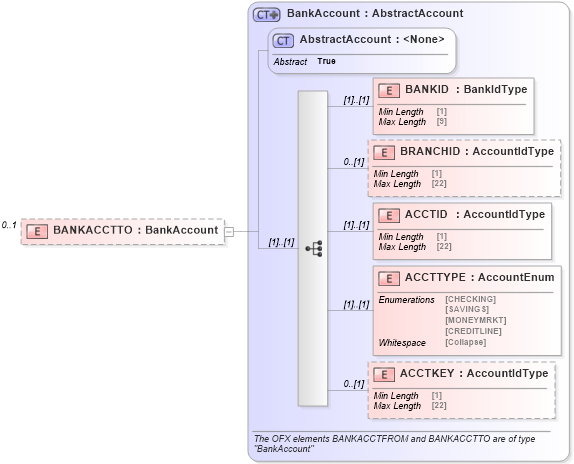

Collapse XSD Schema Diagram:
Drilldown into ACCTKEY Drilldown into ACCTTYPE Drilldown into ACCTID Drilldown into BRANCHID Drilldown into BANKID Drilldown into AbstractAccount Drilldown into BankAccountXSD Diagram of BANKACCTTO
Collapse XSD Schema Code:
<xsd:element name="BANKACCTTO" type="ofx:BankAccount" minOccurs="0" maxOccurs="1" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
BANKID ofx:BANKID (1) (1)
BRANCHID ofx:BRANCHID 0 (1)
ACCTID ofx:ACCTID (1) (1)
ACCTTYPE ofx:ACCTTYPE (1) (1)
ACCTKEY ofx:ACCTKEY 0 (1)
Collapse Derivation Tree:
