OFX - Open Financial Exchange Generated using Liquid XML Studio Developer Edition Liquid XML Studio Designer Edition 9.0.0.2715
Definition Type: Element
Name: FI
Namespace: http://ofx.net/types/2003/04
Type: ofx:FinancialInstitution
Containing Schema: OFX_Signon_Messages.xsd
MinOccurs 0
MaxOccurs 1
Abstract False
Documentation:

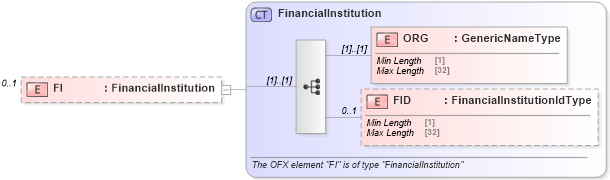

Collapse XSD Schema Diagram:
Drilldown into FID Drilldown into ORG Drilldown into FinancialInstitutionXSD Diagram of FI
Collapse XSD Schema Code:
<xsd:element name="FI" type="ofx:FinancialInstitution" minOccurs="0" maxOccurs="1" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ORG ofx:ORG (1) (1)
FID ofx:FID 0 1
Collapse Derivation Tree:
