OFX - Open Financial Exchange Generated using Liquid XML Studio Developer Edition Liquid XML Studio Designer Edition 9.0.0.2715
Definition Type: ComplexType
Name: IntraSyncResponse
Namespace: http://ofx.net/types/2003/04
Type: ofx:AbstractSyncResponse
Containing Schema: OFX_Banking_Message_Wrappers.xsd
Abstract False
Documentation:
The OFX element "INTRASYNCRS" is of type "IntraSyncResponse"

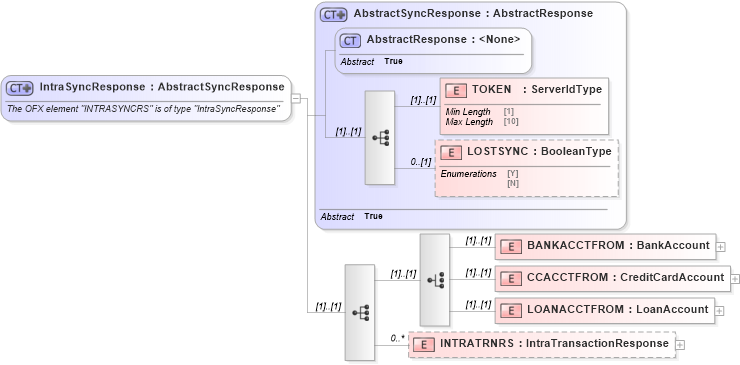

Collapse XSD Schema Diagram:
Drilldown into INTRATRNRS Drilldown into LOANACCTFROM Drilldown into CCACCTFROM Drilldown into BANKACCTFROM Drilldown into LOSTSYNC Drilldown into TOKEN Drilldown into AbstractResponse Drilldown into AbstractSyncResponseXSD Diagram of IntraSyncResponse
Collapse XSD Schema Code:
<xsd:complexType name="IntraSyncResponse">
    <xsd:annotation>
        <xsd:documentation>

        The OFX element "INTRASYNCRS" is of type "IntraSyncResponse"

      </xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="ofx:AbstractSyncResponse">
            <xsd:sequence>
                <xsd:choice>
                    <xsd:element name="BANKACCTFROM" type="ofx:BankAccount" />
                    <xsd:element name="CCACCTFROM" type="ofx:CreditCardAccount" />
                    <xsd:element name="LOANACCTFROM" type="ofx:LoanAccount" />
                </xsd:choice>
                <xsd:element name="INTRATRNRS" type="ofx:IntraTransactionResponse" minOccurs="0" maxOccurs="unbounded" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TOKEN ofx:TOKEN (1) (1)
LOSTSYNC ofx:LOSTSYNC 0 (1)
BANKACCTFROM ofx:BANKACCTFROM (1) (1)
CCACCTFROM ofx:CCACCTFROM (1) (1)
LOANACCTFROM ofx:LOANACCTFROM (1) (1)
INTRATRNRS ofx:INTRATRNRS 0 unbounded
Collapse Derivation Tree:
Collapse References:
ofx:INTRASYNCRS, ofx:INTRASYNCRS, ofx:INTRASYNCRS
