OFX - Open Financial Exchange Generated using Liquid XML Studio Developer Edition Liquid XML Studio Designer Edition 9.0.0.2715
Definition Type: Element
Name: INVSTMTTRNRQ
Namespace: http://ofx.net/types/2003/04
Type: ofx:InvestmentStatementTransactionRequest
Containing Schema: OFX3_Protocol.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract False
Documentation:

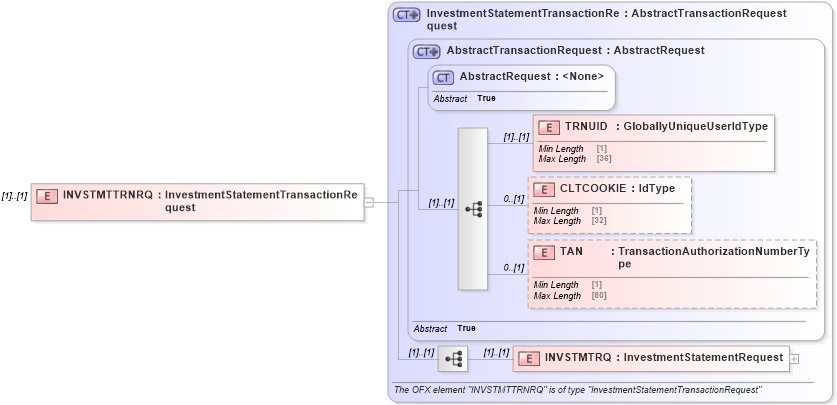

Collapse XSD Schema Diagram:
Drilldown into INVSTMTRQ Drilldown into TAN Drilldown into CLTCOOKIE Drilldown into TRNUID Drilldown into AbstractRequest Drilldown into AbstractTransactionRequest Drilldown into InvestmentStatementTransactionRequestXSD Diagram of INVSTMTTRNRQ
Collapse XSD Schema Code:
<xsd:element name="INVSTMTTRNRQ" type="ofx:InvestmentStatementTransactionRequest" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TRNUID ofx:TRNUID (1) (1)
CLTCOOKIE ofx:CLTCOOKIE 0 (1)
TAN ofx:TAN 0 (1)
INVSTMTRQ ofx:INVSTMTRQ (1) (1)
Collapse Derivation Tree:
Collapse Comments:
