OFX - Open Financial Exchange Generated using Liquid XML Studio Developer Edition Liquid XML Studio Designer Edition 9.0.0.2715
Definition Type: ComplexType
Name: MessageSetList
Namespace: http://ofx.net/types/2003/04
Containing Schema: OFX_Profile.xsd
Abstract False
Documentation:
The OFX element "MSGSETLIST" is of type "MessageSetList"

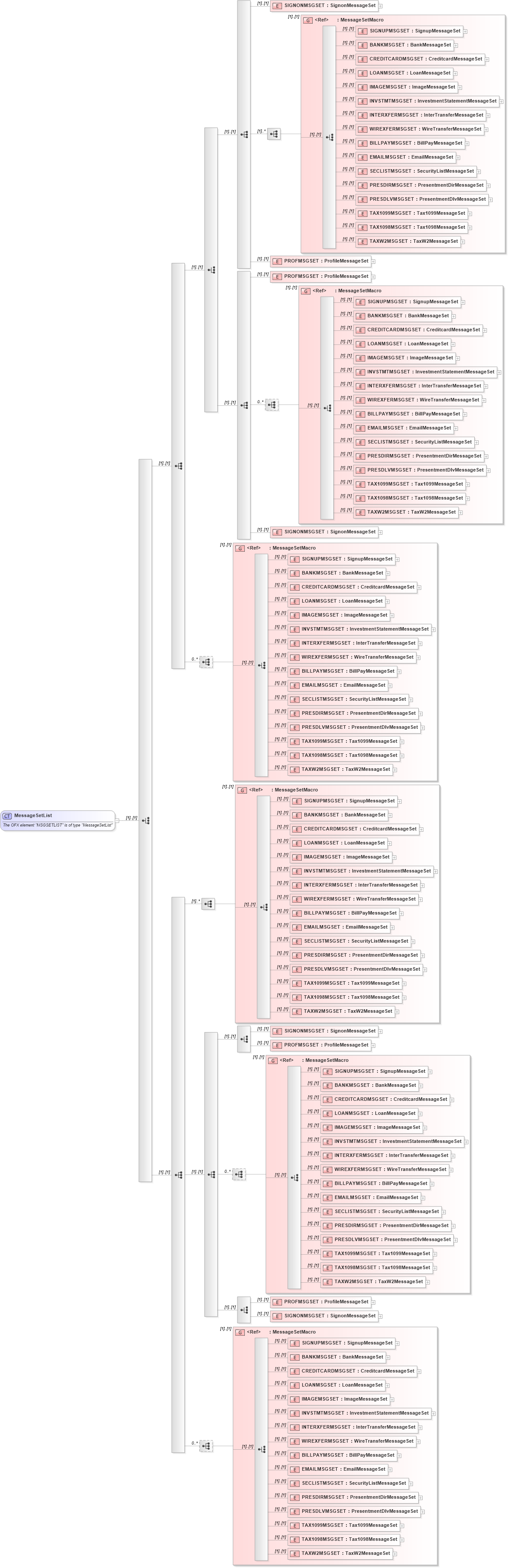

Collapse XSD Schema Diagram:
Drilldown into TAXW2MSGSET Drilldown into TAX1098MSGSET Drilldown into TAX1099MSGSET Drilldown into PRESDLVMSGSET Drilldown into PRESDIRMSGSET Drilldown into SECLISTMSGSET Drilldown into EMAILMSGSET Drilldown into BILLPAYMSGSET Drilldown into WIREXFERMSGSET Drilldown into INTERXFERMSGSET Drilldown into INVSTMTMSGSET Drilldown into IMAGEMSGSET Drilldown into LOANMSGSET Drilldown into CREDITCARDMSGSET Drilldown into BANKMSGSET Drilldown into SIGNUPMSGSET Drilldown into SIGNONMSGSET Drilldown into PROFMSGSET Drilldown into TAXW2MSGSET Drilldown into TAX1098MSGSET Drilldown into TAX1099MSGSET Drilldown into PRESDLVMSGSET Drilldown into PRESDIRMSGSET Drilldown into SECLISTMSGSET Drilldown into EMAILMSGSET Drilldown into BILLPAYMSGSET Drilldown into WIREXFERMSGSET Drilldown into INTERXFERMSGSET Drilldown into INVSTMTMSGSET Drilldown into IMAGEMSGSET Drilldown into LOANMSGSET Drilldown into CREDITCARDMSGSET Drilldown into BANKMSGSET Drilldown into SIGNUPMSGSET Drilldown into PROFMSGSET Drilldown into SIGNONMSGSET Drilldown into TAXW2MSGSET Drilldown into TAX1098MSGSET Drilldown into TAX1099MSGSET Drilldown into PRESDLVMSGSET Drilldown into PRESDIRMSGSET Drilldown into SECLISTMSGSET Drilldown into EMAILMSGSET Drilldown into BILLPAYMSGSET Drilldown into WIREXFERMSGSET Drilldown into INTERXFERMSGSET Drilldown into INVSTMTMSGSET Drilldown into IMAGEMSGSET Drilldown into LOANMSGSET Drilldown into CREDITCARDMSGSET Drilldown into BANKMSGSET Drilldown into SIGNUPMSGSET Drilldown into TAXW2MSGSET Drilldown into TAX1098MSGSET Drilldown into TAX1099MSGSET Drilldown into PRESDLVMSGSET Drilldown into PRESDIRMSGSET Drilldown into SECLISTMSGSET Drilldown into EMAILMSGSET Drilldown into BILLPAYMSGSET Drilldown into WIREXFERMSGSET Drilldown into INTERXFERMSGSET Drilldown into INVSTMTMSGSET Drilldown into IMAGEMSGSET Drilldown into LOANMSGSET Drilldown into CREDITCARDMSGSET Drilldown into BANKMSGSET Drilldown into SIGNUPMSGSET Drilldown into SIGNONMSGSET Drilldown into TAXW2MSGSET Drilldown into TAX1098MSGSET Drilldown into TAX1099MSGSET Drilldown into PRESDLVMSGSET Drilldown into PRESDIRMSGSET Drilldown into SECLISTMSGSET Drilldown into EMAILMSGSET Drilldown into BILLPAYMSGSET Drilldown into WIREXFERMSGSET Drilldown into INTERXFERMSGSET Drilldown into INVSTMTMSGSET Drilldown into IMAGEMSGSET Drilldown into LOANMSGSET Drilldown into CREDITCARDMSGSET Drilldown into BANKMSGSET Drilldown into SIGNUPMSGSET Drilldown into PROFMSGSET Drilldown into PROFMSGSET Drilldown into TAXW2MSGSET Drilldown into TAX1098MSGSET Drilldown into TAX1099MSGSET Drilldown into PRESDLVMSGSET Drilldown into PRESDIRMSGSET Drilldown into SECLISTMSGSET Drilldown into EMAILMSGSET Drilldown into BILLPAYMSGSET Drilldown into WIREXFERMSGSET Drilldown into INTERXFERMSGSET Drilldown into INVSTMTMSGSET Drilldown into IMAGEMSGSET Drilldown into LOANMSGSET Drilldown into CREDITCARDMSGSET Drilldown into BANKMSGSET Drilldown into SIGNUPMSGSET Drilldown into SIGNONMSGSETXSD Diagram of MessageSetList
Collapse XSD Schema Code:
<xsd:complexType name="MessageSetList">
    <xsd:annotation>
        <xsd:documentation>

        The OFX element "MSGSETLIST" is of type "MessageSetList"

      </xsd:documentation>
    </xsd:annotation>
    <xsd:choice>
        <xsd:sequence>
            <xsd:choice>
                <xsd:sequence>
                    <xsd:element name="SIGNONMSGSET" type="ofx:SignonMessageSet" />
                    <xsd:sequence maxOccurs="unbounded">
                        <xsd:group ref="ofx:MessageSetMacro" />
                    </xsd:sequence>
                    <xsd:element name="PROFMSGSET" type="ofx:ProfileMessageSet" />
                </xsd:sequence>
                <xsd:sequence>
                    <xsd:element name="PROFMSGSET" type="ofx:ProfileMessageSet" />
                    <xsd:sequence minOccurs="0" maxOccurs="unbounded">
                        <xsd:group ref="ofx:MessageSetMacro" />
                    </xsd:sequence>
                    <xsd:element name="SIGNONMSGSET" type="ofx:SignonMessageSet" />
                </xsd:sequence>
            </xsd:choice>
            <xsd:sequence minOccurs="0" maxOccurs="unbounded">
                <xsd:group ref="ofx:MessageSetMacro" />
            </xsd:sequence>
        </xsd:sequence>
        <xsd:sequence>
            <xsd:sequence maxOccurs="unbounded">
                <xsd:group ref="ofx:MessageSetMacro" />
            </xsd:sequence>
            <xsd:sequence>
                <xsd:choice>
                    <xsd:element name="SIGNONMSGSET" type="ofx:SignonMessageSet" />
                    <xsd:element name="PROFMSGSET" type="ofx:ProfileMessageSet" />
                </xsd:choice>
                <xsd:sequence minOccurs="0" maxOccurs="unbounded">
                    <xsd:group ref="ofx:MessageSetMacro" />
                </xsd:sequence>
                <xsd:choice>
                    <xsd:element name="PROFMSGSET" type="ofx:ProfileMessageSet" />
                    <xsd:element name="SIGNONMSGSET" type="ofx:SignonMessageSet" />
                </xsd:choice>
            </xsd:sequence>
            <xsd:sequence minOccurs="0" maxOccurs="unbounded">
                <xsd:group ref="ofx:MessageSetMacro" />
            </xsd:sequence>
        </xsd:sequence>
    </xsd:choice>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
SIGNONMSGSET ofx:SIGNONMSGSET (1) (1)
SIGNUPMSGSET ofx:SIGNUPMSGSET (1) (1)
BANKMSGSET ofx:BANKMSGSET (1) (1)
CREDITCARDMSGSET ofx:CREDITCARDMSGSET (1) (1)
LOANMSGSET ofx:LOANMSGSET (1) (1)
IMAGEMSGSET ofx:IMAGEMSGSET (1) (1)
INVSTMTMSGSET ofx:INVSTMTMSGSET (1) (1)
INTERXFERMSGSET ofx:INTERXFERMSGSET (1) (1)
WIREXFERMSGSET ofx:WIREXFERMSGSET (1) (1)
BILLPAYMSGSET ofx:BILLPAYMSGSET (1) (1)
EMAILMSGSET ofx:EMAILMSGSET (1) (1)
SECLISTMSGSET ofx:SECLISTMSGSET (1) (1)
PRESDIRMSGSET ofx:PRESDIRMSGSET (1) (1)
PRESDLVMSGSET ofx:PRESDLVMSGSET (1) (1)
TAX1099MSGSET ofx:TAX1099MSGSET (1) (1)
TAX1098MSGSET ofx:TAX1098MSGSET (1) (1)
TAXW2MSGSET ofx:TAXW2MSGSET (1) (1)
PROFMSGSET ofx:PROFMSGSET (1) (1)
PROFMSGSET ofx:PROFMSGSET (1) (1)
SIGNONMSGSET ofx:SIGNONMSGSET (1) (1)
SIGNONMSGSET ofx:SIGNONMSGSET (1) (1)
PROFMSGSET ofx:PROFMSGSET (1) (1)
PROFMSGSET ofx:PROFMSGSET (1) (1)
SIGNONMSGSET ofx:SIGNONMSGSET (1) (1)
<xs:group> ofx:MessageSetMacro (1) (1)
<xs:group> ofx:MessageSetMacro (1) (1)
<xs:group> ofx:MessageSetMacro (1) (1)
<xs:group> ofx:MessageSetMacro (1) (1)
<xs:group> ofx:MessageSetMacro (1) (1)
<xs:group> ofx:MessageSetMacro (1) (1)
Collapse Derivation Tree:
Collapse References:
ofx:MSGSETLIST
