Definition Type: Element
Name: RECPMTTRNRQ
Namespace: http://ofx.net/types/2003/04
Type: ofx:RecurringPaymentTransactionRequest
Containing Schema: OFX_BillPay_Message_Wrappers.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract False
Documentation:

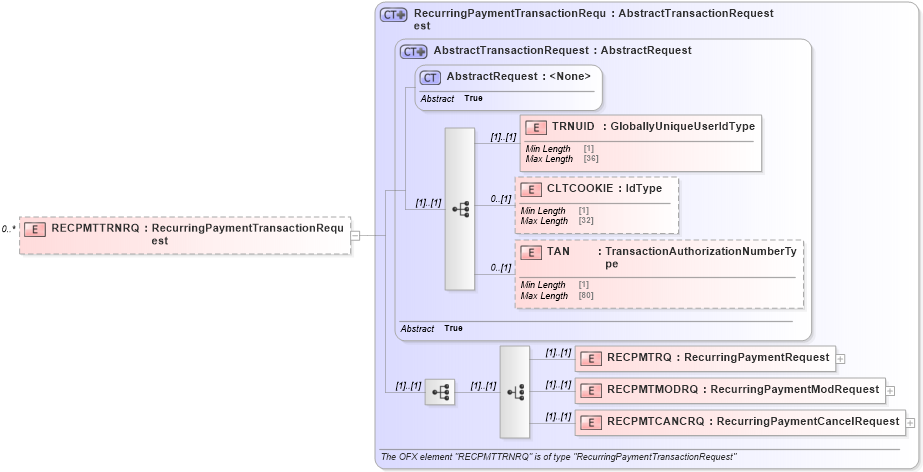

Collapse XSD Schema Diagram:
Drilldown into RECPMTCANCRQ Drilldown into RECPMTMODRQ Drilldown into RECPMTRQ Drilldown into TAN Drilldown into CLTCOOKIE Drilldown into TRNUID Drilldown into AbstractRequest Drilldown into AbstractTransactionRequest Drilldown into RecurringPaymentTransactionRequestXSD Diagram of RECPMTTRNRQ
Collapse XSD Schema Code:
<xsd:element name="RECPMTTRNRQ" type="ofx:RecurringPaymentTransactionRequest" minOccurs="0" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TRNUID ofx:TRNUID (1) (1)
CLTCOOKIE ofx:CLTCOOKIE 0 (1)
TAN ofx:TAN 0 (1)
RECPMTRQ ofx:RECPMTRQ (1) (1)
RECPMTMODRQ ofx:RECPMTMODRQ (1) (1)
RECPMTCANCRQ ofx:RECPMTCANCRQ (1) (1)
Collapse Derivation Tree:
