Definition Type: Element
Name: SignonRequest
Namespace: http://ofx.net/types/2003/04
Type: ofx:SignonRequest
Containing Schema: OFX_TypeDefinitions.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract False
Documentation:

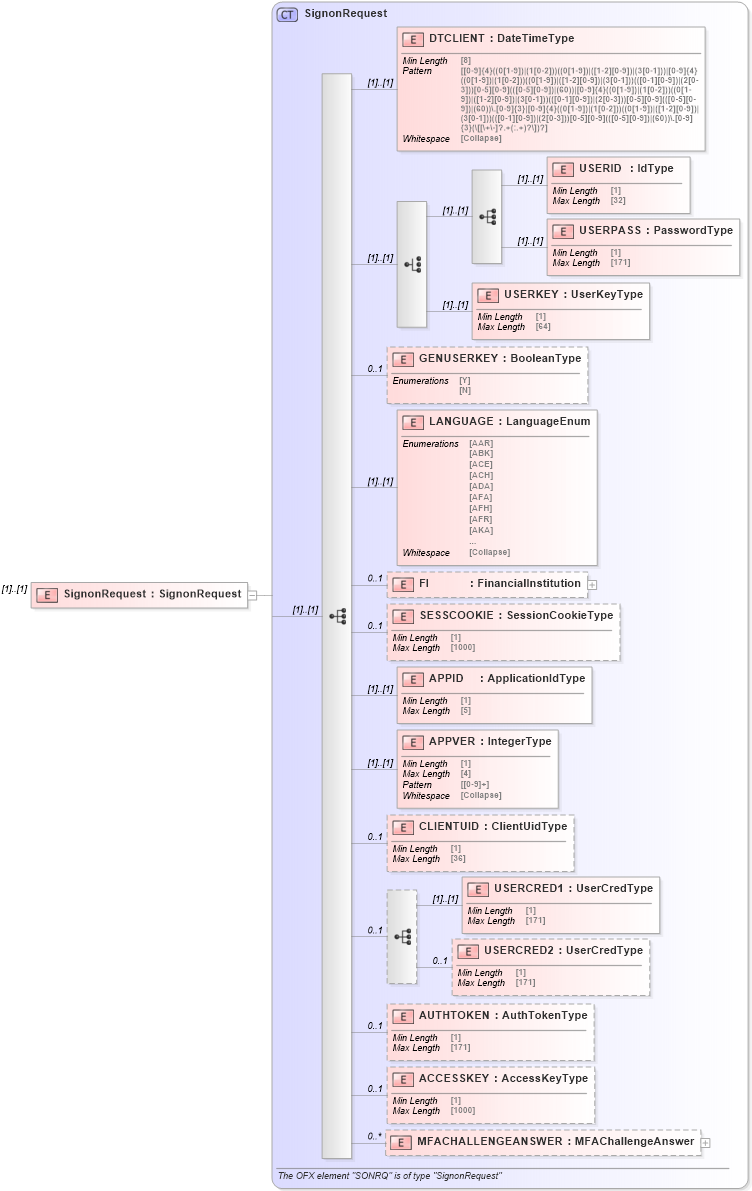

Collapse XSD Schema Diagram:
Drilldown into MFACHALLENGEANSWER Drilldown into ACCESSKEY Drilldown into AUTHTOKEN Drilldown into USERCRED2 Drilldown into USERCRED1 Drilldown into CLIENTUID Drilldown into APPVER Drilldown into APPID Drilldown into SESSCOOKIE Drilldown into FI Drilldown into LANGUAGE Drilldown into GENUSERKEY Drilldown into USERKEY Drilldown into USERPASS Drilldown into USERID Drilldown into DTCLIENT Drilldown into SignonRequestXSD Diagram of SignonRequest
Collapse XSD Schema Code:
<xsd:element name="SignonRequest" type="ofx:SignonRequest" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DTCLIENT ofx:DTCLIENT (1) (1)
USERID ofx:USERID (1) (1)
USERPASS ofx:USERPASS (1) (1)
USERKEY ofx:USERKEY (1) (1)
GENUSERKEY ofx:GENUSERKEY 0 1
LANGUAGE ofx:LANGUAGE (1) (1)
FI ofx:FI 0 1
SESSCOOKIE ofx:SESSCOOKIE 0 1
APPID ofx:APPID (1) (1)
APPVER ofx:APPVER (1) (1)
CLIENTUID ofx:CLIENTUID 0 1
USERCRED1 ofx:USERCRED1 (1) (1)
USERCRED2 ofx:USERCRED2 0 1
AUTHTOKEN ofx:AUTHTOKEN 0 1
ACCESSKEY ofx:ACCESSKEY 0 1
MFACHALLENGEANSWER ofx:MFACHALLENGEANSWER 0 unbounded
