OFX - Open Financial Exchange Generated using Liquid XML Studio Developer Edition Liquid XML Studio Designer Edition 9.0.0.2715
Definition Type: Element
Name: SONRS
Namespace: http://ofx.net/types/2003/04
Type: ofx:SignonResponse
Containing Schema: OFX3_Protocol_dotNET.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract False
Documentation:

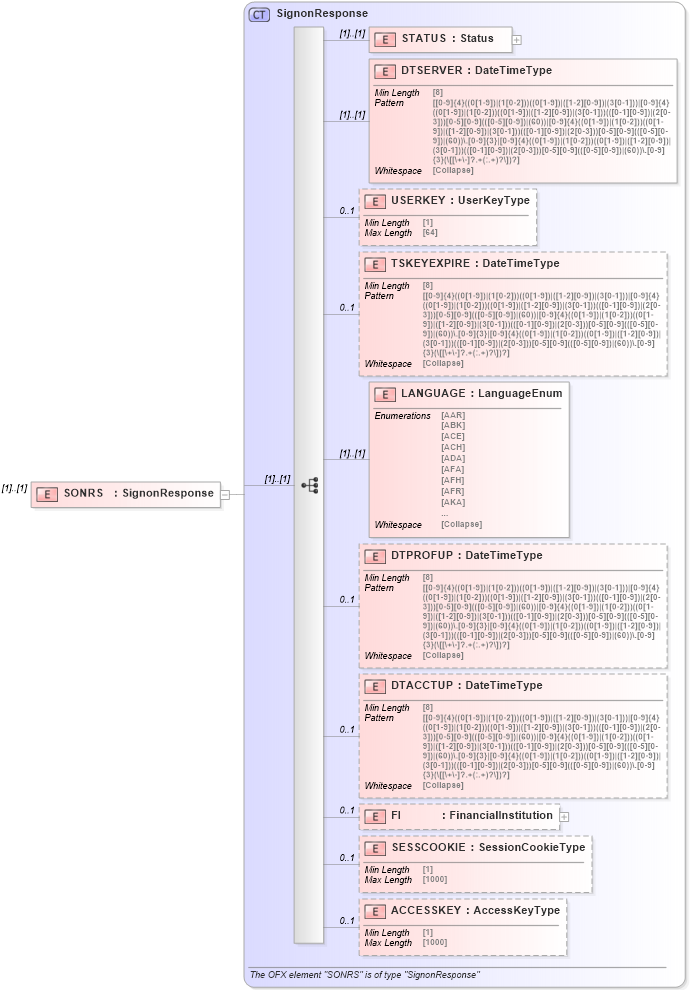

Collapse XSD Schema Diagram:
Drilldown into ACCESSKEY Drilldown into SESSCOOKIE Drilldown into FI Drilldown into DTACCTUP Drilldown into DTPROFUP Drilldown into LANGUAGE Drilldown into TSKEYEXPIRE Drilldown into USERKEY Drilldown into DTSERVER Drilldown into STATUS Drilldown into SignonResponseXSD Diagram of SONRS
Collapse XSD Schema Code:
<xsd:element name="SONRS" type="ofx:SignonResponse" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
STATUS ofx:STATUS (1) (1)
DTSERVER ofx:DTSERVER (1) (1)
USERKEY ofx:USERKEY 0 1
TSKEYEXPIRE ofx:TSKEYEXPIRE 0 1
LANGUAGE ofx:LANGUAGE (1) (1)
DTPROFUP ofx:DTPROFUP 0 1
DTACCTUP ofx:DTACCTUP 0 1
FI ofx:FI 0 1
SESSCOOKIE ofx:SESSCOOKIE 0 1
ACCESSKEY ofx:ACCESSKEY 0 1
Collapse Derivation Tree:
