OFX - Open Financial Exchange Generated using Liquid XML Studio Developer Edition Liquid XML Studio Designer Edition 9.0.0.2715
Definition Type: ComplexType
Name: Tax1099B_V100
Namespace: http://ofx.net/types/2003/04
Type: ofx:AbstractTaxForm1099
Containing Schema: OFX_Tax1099.xsd
Abstract False
Documentation:
The OFX element "TAX1099B_V100" is of type "Tax1099B_V100"

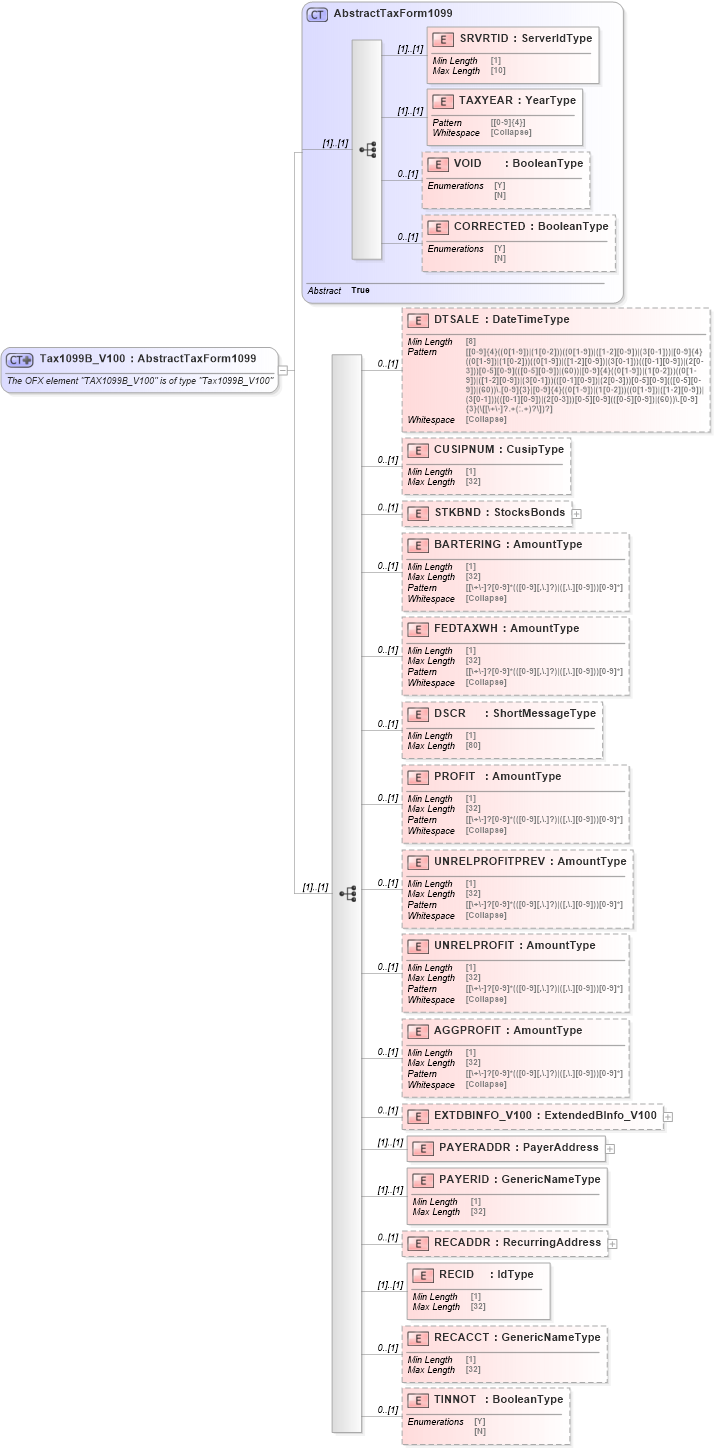

Collapse XSD Schema Diagram:
Drilldown into TINNOT Drilldown into RECACCT Drilldown into RECID Drilldown into RECADDR Drilldown into PAYERID Drilldown into PAYERADDR Drilldown into EXTDBINFO_V100 Drilldown into AGGPROFIT Drilldown into UNRELPROFIT Drilldown into UNRELPROFITPREV Drilldown into PROFIT Drilldown into DSCR Drilldown into FEDTAXWH Drilldown into BARTERING Drilldown into STKBND Drilldown into CUSIPNUM Drilldown into DTSALE Drilldown into CORRECTED Drilldown into VOID Drilldown into TAXYEAR Drilldown into SRVRTID Drilldown into AbstractTaxForm1099XSD Diagram of Tax1099B_V100
Collapse XSD Schema Code:
<xsd:complexType name="Tax1099B_V100">
    <xsd:annotation>
        <xsd:documentation>

        The OFX element "TAX1099B_V100" is of type "Tax1099B_V100"

      </xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="ofx:AbstractTaxForm1099">
            <xsd:sequence>
                <xsd:element name="DTSALE" type="ofx:DateTimeType" minOccurs="0" />
                <xsd:element name="CUSIPNUM" type="ofx:CusipType" minOccurs="0" />
                <xsd:element name="STKBND" type="ofx:StocksBonds" minOccurs="0" />
                <xsd:element name="BARTERING" type="ofx:AmountType" minOccurs="0" />
                <xsd:element name="FEDTAXWH" type="ofx:AmountType" minOccurs="0" />
                <xsd:element name="DSCR" type="ofx:ShortMessageType" minOccurs="0" />
                <xsd:element name="PROFIT" type="ofx:AmountType" minOccurs="0" />
                <xsd:element name="UNRELPROFITPREV" type="ofx:AmountType" minOccurs="0" />
                <xsd:element name="UNRELPROFIT" type="ofx:AmountType" minOccurs="0" />
                <xsd:element name="AGGPROFIT" type="ofx:AmountType" minOccurs="0" />
                <xsd:element name="EXTDBINFO_V100" type="ofx:ExtendedBInfo_V100" minOccurs="0" />
                <xsd:element name="PAYERADDR" type="ofx:PayerAddress" />
                <xsd:element name="PAYERID" type="ofx:GenericNameType" />
                <xsd:element name="RECADDR" type="ofx:RecurringAddress" minOccurs="0" />
                <xsd:element name="RECID" type="ofx:IdType" />
                <xsd:element name="RECACCT" type="ofx:GenericNameType" minOccurs="0" />
                <xsd:element name="TINNOT" type="ofx:BooleanType" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
SRVRTID ofx:SRVRTID (1) (1)
TAXYEAR ofx:TAXYEAR (1) (1)
VOID ofx:VOID 0 (1)
CORRECTED ofx:CORRECTED 0 (1)
DTSALE ofx:DTSALE 0 (1)
CUSIPNUM ofx:CUSIPNUM 0 (1)
STKBND ofx:STKBND 0 (1)
BARTERING ofx:BARTERING 0 (1)
FEDTAXWH ofx:FEDTAXWH 0 (1)
DSCR ofx:DSCR 0 (1)
PROFIT ofx:PROFIT 0 (1)
UNRELPROFITPREV ofx:UNRELPROFITPREV 0 (1)
UNRELPROFIT ofx:UNRELPROFIT 0 (1)
AGGPROFIT ofx:AGGPROFIT 0 (1)
EXTDBINFO_V100 ofx:EXTDBINFO_V100 0 (1)
PAYERADDR ofx:PAYERADDR (1) (1)
PAYERID ofx:PAYERID (1) (1)
RECADDR ofx:RECADDR 0 (1)
RECID ofx:RECID (1) (1)
RECACCT ofx:RECACCT 0 (1)
TINNOT ofx:TINNOT 0 (1)
Collapse Derivation Tree:
Collapse References:
ofx:TAX1099B_V100
