Definition Type: Element
Name: WIRESYNCRQ
Namespace: http://ofx.net/types/2003/04
Type: ofx:WireSyncRequest
Containing Schema: OFX3_Protocol_dotNET.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract False
Documentation:

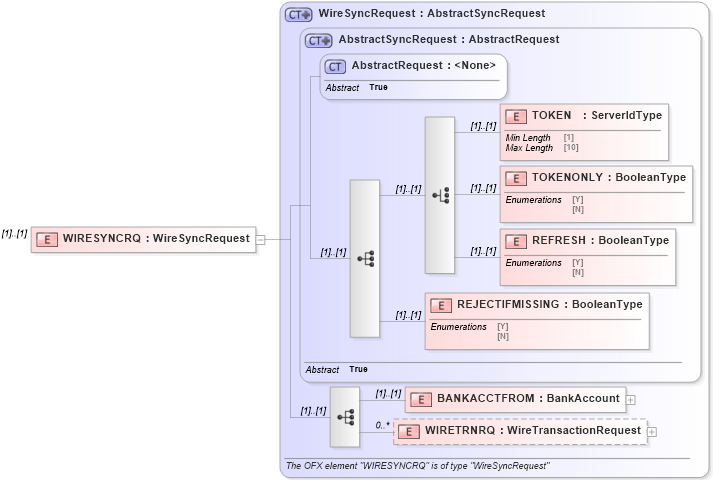

Collapse XSD Schema Diagram:
Drilldown into WIRETRNRQ Drilldown into BANKACCTFROM Drilldown into REJECTIFMISSING Drilldown into REFRESH Drilldown into TOKENONLY Drilldown into TOKEN Drilldown into AbstractRequest Drilldown into AbstractSyncRequest Drilldown into WireSyncRequestXSD Diagram of WIRESYNCRQ
Collapse XSD Schema Code:
<xsd:element name="WIRESYNCRQ" type="ofx:WireSyncRequest" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TOKEN ofx:TOKEN (1) (1)
TOKENONLY ofx:TOKENONLY (1) (1)
REFRESH ofx:REFRESH (1) (1)
REJECTIFMISSING ofx:REJECTIFMISSING (1) (1)
BANKACCTFROM ofx:BANKACCTFROM (1) (1)
WIRETRNRQ ofx:WIRETRNRQ 0 unbounded
