Definition Type: Element
Name: WIRETRNRQ
Namespace: http://ofx.net/types/2003/04
Type: ofx:WireTransactionRequest
Containing Schema: OFX3_Protocol.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract False
Documentation:

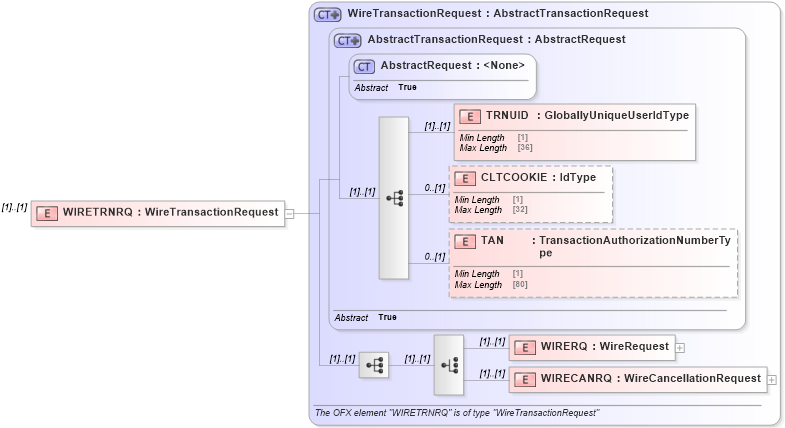

Collapse XSD Schema Diagram:
Drilldown into WIRECANRQ Drilldown into WIRERQ Drilldown into TAN Drilldown into CLTCOOKIE Drilldown into TRNUID Drilldown into AbstractRequest Drilldown into AbstractTransactionRequest Drilldown into WireTransactionRequestXSD Diagram of WIRETRNRQ
Collapse XSD Schema Code:
<xsd:element name="WIRETRNRQ" type="ofx:WireTransactionRequest" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TRNUID ofx:TRNUID (1) (1)
CLTCOOKIE ofx:CLTCOOKIE 0 (1)
TAN ofx:TAN 0 (1)
WIRERQ ofx:WIRERQ (1) (1)
WIRECANRQ ofx:WIRECANRQ (1) (1)
Collapse Derivation Tree:
Collapse Comments:
