Documentation for Microsoft Office 2003 Reference Schemas
Definition Type: Element
Name: VisioDocument
Namespace: http://schemas.microsoft.com/visio/2003/core
Type: nsA:VisioDocument_Type
Containing Schema: visio.xsd
Abstract

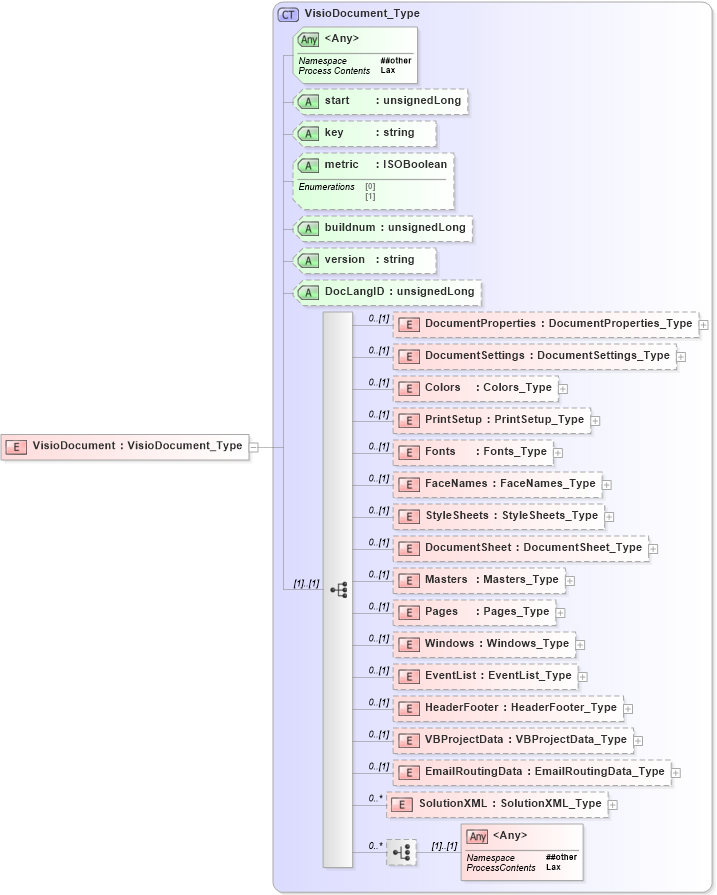

Collapse XSD Schema Diagram:
Drilldown into SolutionXML in schema visio_xsd Drilldown into EmailRoutingData in schema visio_xsd Drilldown into VBProjectData in schema visio_xsd Drilldown into HeaderFooter in schema visio_xsd Drilldown into EventList in schema visio_xsd Drilldown into Windows in schema visio_xsd Drilldown into Pages in schema visio_xsd Drilldown into Masters in schema visio_xsd Drilldown into DocumentSheet in schema visio_xsd Drilldown into StyleSheets in schema visio_xsd Drilldown into FaceNames in schema visio_xsd Drilldown into Fonts in schema visio_xsd Drilldown into PrintSetup in schema visio_xsd Drilldown into Colors in schema visio_xsd Drilldown into DocumentSettings in schema visio_xsd Drilldown into DocumentProperties in schema visio_xsd Drilldown into DocLangID in schema visio_xsd Drilldown into version in schema visio_xsd Drilldown into buildnum in schema visio_xsd Drilldown into metric in schema visio_xsd Drilldown into key in schema visio_xsd Drilldown into start in schema visio_xsd Drilldown into VisioDocument_Type in schema visio_xsdXSD Diagram of VisioDocument in schema visio_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:element name="VisioDocument" type="VisioDocument_Type" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentProperties nsA:DocumentProperties 0 (1)
DocumentSettings nsA:DocumentSettings 0 (1)
Colors nsA:Colors 0 (1)
PrintSetup nsA:PrintSetup 0 (1)
Fonts nsA:Fonts 0 (1)
FaceNames nsA:FaceNames 0 (1)
StyleSheets nsA:StyleSheets 0 (1)
DocumentSheet nsA:DocumentSheet 0 (1)
Masters nsA:Masters 0 (1)
Pages nsA:Pages 0 (1)
Windows nsA:Windows 0 (1)
EventList nsA:EventList 0 (1)
HeaderFooter nsA:HeaderFooter 0 (1)
VBProjectData nsA:VBProjectData 0 (1)
EmailRoutingData nsA:EmailRoutingData 0 (1)
SolutionXML nsA:SolutionXML 0 unbounded
<xs:any> Allowed namespace: '##other' (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
start nsA:start (Optional)
key nsA:key (Optional)
metric nsA:metric (Optional)
buildnum nsA:buildnum (Optional)
version nsA:version (Optional)
DocLangID nsA:DocLangID (Optional)
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
