Office Open XML (OOXML / OpenXML / Ecma 376) Generated using Liquid XML Studio Developer Edition Liquid XML Studio Designer Edition 9.0.0.2715
Definition Type: Element
Name: tcPr
Namespace: http://schemas.openxmlformats.org/drawingml/2006/main
Type: a:CT_TableCellProperties
Containing Schema: dml-table.xsd
MinOccurs 0
MaxOccurs 1
Abstract False
Documentation:
Table Cell Properties

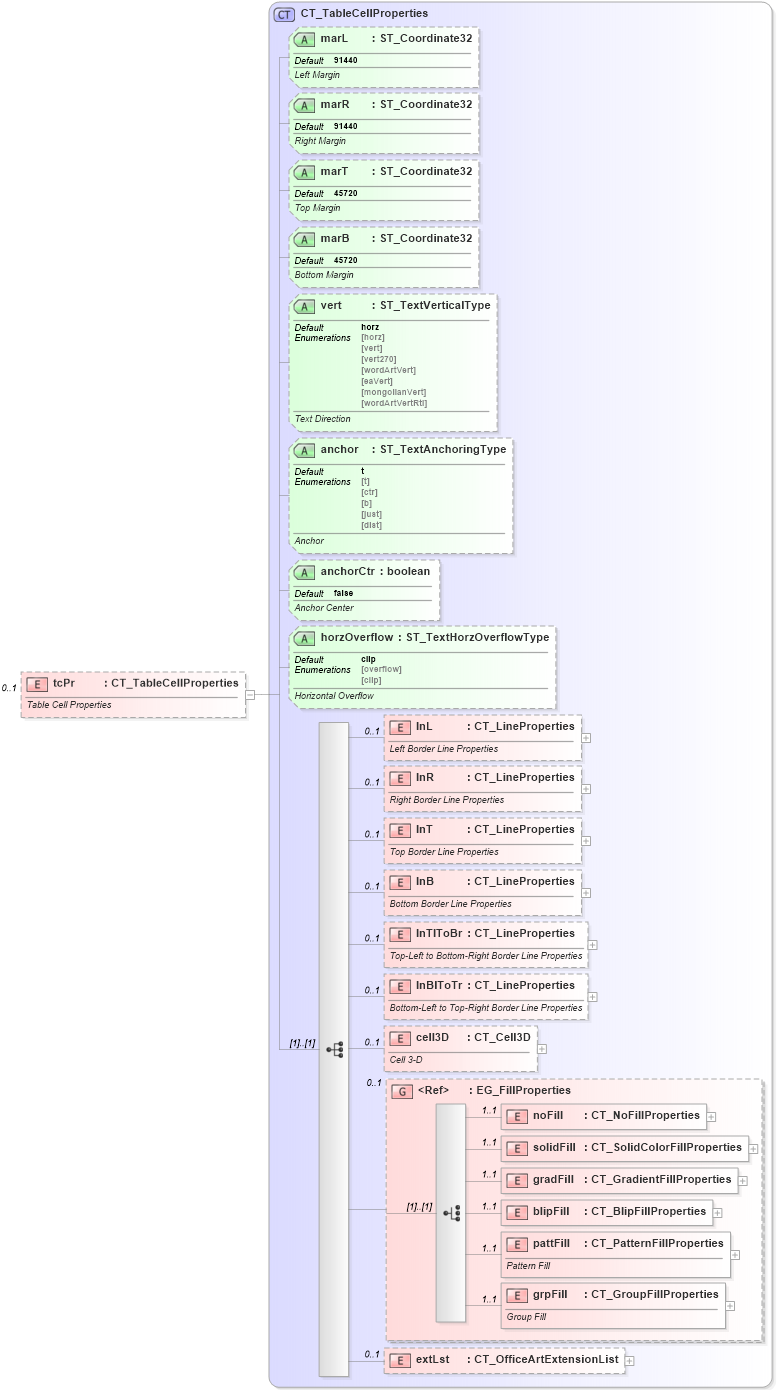

Collapse XSD Schema Diagram:
Drilldown into horzOverflow Drilldown into anchorCtr Drilldown into anchor Drilldown into vert Drilldown into marB Drilldown into marT Drilldown into marR Drilldown into marL Drilldown into extLst Drilldown into grpFill Drilldown into pattFill Drilldown into blipFill Drilldown into gradFill Drilldown into solidFill Drilldown into noFill Drilldown into cell3D Drilldown into lnBlToTr Drilldown into lnTlToBr Drilldown into lnB Drilldown into lnT Drilldown into lnR Drilldown into lnL Drilldown into CT_TableCellPropertiesXSD Diagram of tcPr
Collapse XSD Schema Code:
<xsd:element name="tcPr" type="CT_TableCellProperties" minOccurs="0" maxOccurs="1">
    <xsd:annotation>
        <xsd:documentation>Table Cell Properties</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
lnL a:lnL 0 1
lnR a:lnR 0 1
lnT a:lnT 0 1
lnB a:lnB 0 1
lnTlToBr a:lnTlToBr 0 1
lnBlToTr a:lnBlToTr 0 1
cell3D a:cell3D 0 1
noFill a:noFill 1 1
solidFill a:solidFill 1 1
gradFill a:gradFill 1 1
blipFill a:blipFill 1 1
pattFill a:pattFill 1 1
grpFill a:grpFill 1 1
extLst a:extLst 0 1
<xs:group> a:EG_FillProperties 0 1
Collapse Child Attributes:
Name Type Default Value Use
marL a:marL 91440 Optional
marR a:marR 91440 Optional
marT a:marT 45720 Optional
marB a:marB 45720 Optional
vert a:vert horz Optional
anchor a:anchor t Optional
anchorCtr a:anchorCtr false Optional
horzOverflow a:horzOverflow clip Optional
Collapse Derivation Tree:
Collapse Comments:
