Speech Recognition Grammar Specification Generated using Liquid XML Studio Developer Edition Liquid XML Studio Designer Edition 9.0.0.2773
Definition Type: Group
Name: grammar.class
Containing Schema: grammar-core.xsd
Documentation:
grammar content model

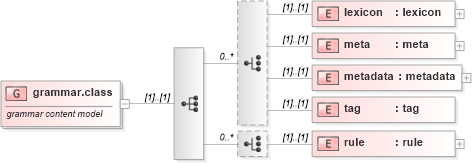

Collapse XSD Schema Diagram:
Drilldown into rule Drilldown into tag Drilldown into metadata Drilldown into meta Drilldown into lexiconXSD Diagram of grammar.class
Collapse XSD Schema Code:
<xsd:group name="grammar.class">
    <xsd:annotation>
        <xsd:documentation>grammar content model</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:choice minOccurs="0" maxOccurs="unbounded">
            <xsd:element name="lexicon" type="lexicon" />
            <xsd:element name="meta" type="meta" />
            <xsd:element name="metadata" type="metadata" />
            <xsd:element name="tag" type="tag" />
        </xsd:choice>
        <xsd:choice minOccurs="0" maxOccurs="unbounded">
            <xsd:element name="rule" type="rule" />
        </xsd:choice>
    </xsd:sequence>
</xsd:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
lexicon lexicon (1) (1)
meta meta (1) (1)
metadata metadata (1) (1)
tag tag (1) (1)
rule rule (1) (1)
Collapse Comments:
