Documentation for Acord - Life, Annuity & Health Standards Program
Definition Type: Element
Name: OLifEExtension
Namespace: http://ACORD.org/Standards/Life/2
Containing Schema: XlifeBase2.20.01.xsd
Abstract

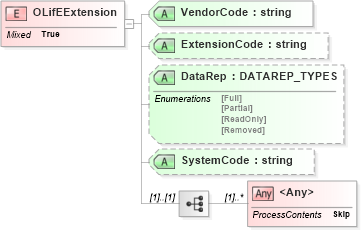

Collapse XSD Schema Diagram:
Drilldown into SystemCode in schema xlifebase2_20_01_xsd Drilldown into DataRep in schema xlifebase2_20_01_xsd Drilldown into ExtensionCode in schema xlifebase2_20_01_xsd Drilldown into VendorCode in schema xlifebase2_20_01_xsdXSD Diagram of OLifEExtension in schema xlifebase2_20_01_xsd (Acord - Life, Annuity & Health Standards Program)
Collapse XSD Schema Code:
<xsd:element name="OLifEExtension">
    <xsd:complexType mixed="true">
        <xsd:sequence>
            <xsd:any processContents="skip" maxOccurs="unbounded" />
        </xsd:sequence>
        <xsd:attribute name="VendorCode" type="xsd:string" use="required" />
        <xsd:attribute name="ExtensionCode" type="xsd:string" />
        <xsd:attribute name="DataRep" type="DATAREP_TYPES" />
        <xsd:attribute name="SystemCode" type="xsd:string" />
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
<xs:any> (1) unbounded
Collapse Child Attributes:
Name Type Default Value Use
VendorCode nsA:VendorCode Required
ExtensionCode nsA:ExtensionCode (Optional)
DataRep nsA:DataRep (Optional)
SystemCode nsA:SystemCode (Optional)
