Documentation for Acord - Reinsurance & Large Commercial Standards Program
Definition Type: ComplexType
Name: BalanceAmtItemType
Namespace: http://www.ACORD.org/standards/Jv-Ins-Reinsurance/2008-1
Containing Schema: Jv-Ins-Reinsurance-2008-1.xsd
Abstract

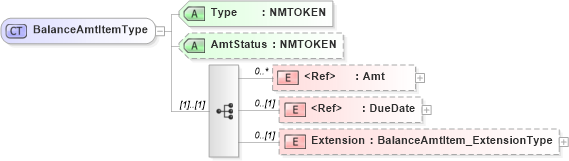

Collapse XSD Schema Diagram:
Drilldown into Extension in schema jv-ins-reinsurance-2008-1_xsd Drilldown into DueDate in schema jv-ins-reinsurance-2008-1_xsd Drilldown into Amt in schema jv-ins-reinsurance-2008-1_xsd Drilldown into AmtStatus in schema jv-ins-reinsurance-2008-1_xsd Drilldown into Type in schema jv-ins-reinsurance-2008-1_xsdXSD Diagram of BalanceAmtItemType in schema jv-ins-reinsurance-2008-1_xsd (Acord - Reinsurance & Large Commercial Standards Program)
Collapse XSD Schema Code:
<xs:complexType name="BalanceAmtItemType">
    <xs:sequence>
        <xs:element ref="Amt" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="DueDate" minOccurs="0" />
        <xs:element name="Extension" type="BalanceAmtItem_ExtensionType" minOccurs="0" />
    </xs:sequence>
    <xs:attribute name="Type" type="xs:NMTOKEN" use="required" />
    <xs:attribute name="AmtStatus" type="xs:NMTOKEN" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Amt nsA:Amt 0 unbounded
DueDate nsA:DueDate 0 (1)
Extension nsA:Extension 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
Type nsA:Type Required
AmtStatus nsA:AmtStatus (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:BalanceAmtItem
