Documentation for Acord - Reinsurance & Large Commercial Standards Program
Definition Type: ComplexType
Name: GENERALPARTY_Type
Namespace: http://www.ACORD.org/Standards/AcordMsgSvc/1
Containing Schema: AcordMsgSvc_base_v-1-5-0.xsd
Abstract

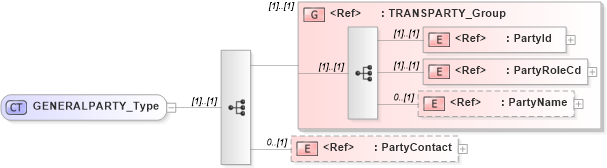

Collapse XSD Schema Diagram:
Drilldown into PartyContact in schema acordmsgsvc_base_v-1-5-0_xsd Drilldown into PartyName in schema acordmsgsvc_base_v-1-5-0_xsd Drilldown into PartyRoleCd in schema acordmsgsvc_base_v-1-5-0_xsd Drilldown into PartyId in schema acordmsgsvc_base_v-1-5-0_xsd Drilldown into TRANSPARTY_Group in schema acordmsgsvc_base_v-1-5-0_xsdXSD Diagram of GENERALPARTY_Type in schema acordmsgsvc_base_v-1-5-0_xsd (Acord - Reinsurance & Large Commercial Standards Program)
Collapse XSD Schema Code:
<xs:complexType name="GENERALPARTY_Type">
    <xs:sequence>
        <xs:group ref="TRANSPARTY_Group" />
        <xs:element ref="PartyContact" minOccurs="0" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PartyId ac:PartyId (1) (1)
PartyRoleCd ac:PartyRoleCd (1) (1)
PartyName ac:PartyName 0 (1)
PartyContact ac:PartyContact 0 (1)
<xs:group> ac:TRANSPARTY_Group (1) (1)
Collapse Derivation Tree:
Collapse References:
ac:Operator, ac:Originator, ac:Owner, ac:Receiver, ac:Sender
