Docs for schema item ReferredBordereauType in Acord - Reinsurance & Large Commercial Standards Program

Documentation for Acord - Reinsurance & Large Commercial Standards Program

Definition Type:	ComplexType
Name:	ReferredBordereauType
Namespace:	http://www.ACORD.org/standards/Jv-Ins-Reinsurance/2008-1
Containing Schema:	Jv-Ins-Reinsurance-2008-1.xsd
Abstract

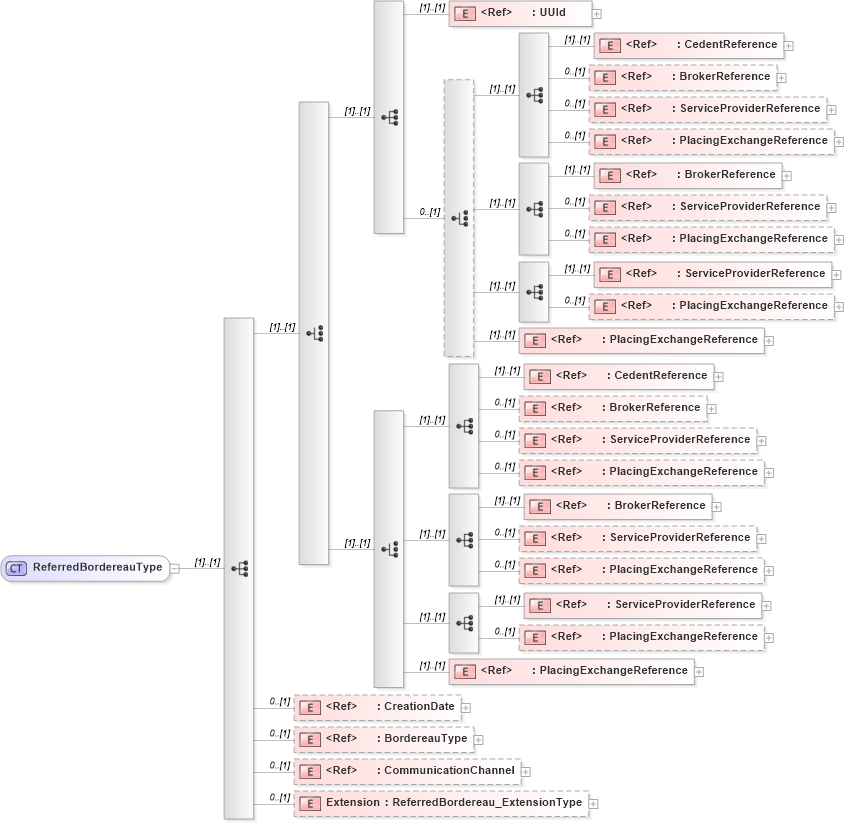

XSD Schema Diagram:

XSD Diagram of ReferredBordereauType in schema jv-ins-reinsurance-2008-1_xsd (Acord - Reinsurance & Large Commercial Standards Program)

XSD Schema Code:

<xs:complexType name="ReferredBordereauType">
    <xs:sequence>
        <xs:choice>
            <xs:sequence>
                <xs:element ref="UUId" />
                <xs:choice minOccurs="0">
                    <xs:sequence>
                        <xs:element ref="CedentReference" />
                        <xs:element ref="BrokerReference" minOccurs="0" />
                        <xs:element ref="ServiceProviderReference" minOccurs="0" />
                        <xs:element ref="PlacingExchangeReference" minOccurs="0" />
                    </xs:sequence>
                    <xs:sequence>
                        <xs:element ref="BrokerReference" />
                        <xs:element ref="ServiceProviderReference" minOccurs="0" />
                        <xs:element ref="PlacingExchangeReference" minOccurs="0" />
                    </xs:sequence>
                    <xs:sequence>
                        <xs:element ref="ServiceProviderReference" />
                        <xs:element ref="PlacingExchangeReference" minOccurs="0" />
                    </xs:sequence>
                    <xs:element ref="PlacingExchangeReference" />
                </xs:choice>
            </xs:sequence>
            <xs:choice>
                <xs:sequence>
                    <xs:element ref="CedentReference" />
                    <xs:element ref="BrokerReference" minOccurs="0" />
                    <xs:element ref="ServiceProviderReference" minOccurs="0" />
                    <xs:element ref="PlacingExchangeReference" minOccurs="0" />
                </xs:sequence>
                <xs:sequence>
                    <xs:element ref="BrokerReference" />
                    <xs:element ref="ServiceProviderReference" minOccurs="0" />
                    <xs:element ref="PlacingExchangeReference" minOccurs="0" />
                </xs:sequence>
                <xs:sequence>
                    <xs:element ref="ServiceProviderReference" />
                    <xs:element ref="PlacingExchangeReference" minOccurs="0" />
                </xs:sequence>
                <xs:element ref="PlacingExchangeReference" />
            </xs:choice>
        </xs:choice>
        <xs:element ref="CreationDate" minOccurs="0" />
        <xs:element ref="BordereauType" minOccurs="0" />
        <xs:element ref="CommunicationChannel" minOccurs="0" />
        <xs:element name="Extension" type="ReferredBordereau_ExtensionType" minOccurs="0" />
    </xs:sequence>
</xs:complexType>

Child Elements:

Name	Type	Min Occurs	Max Occurs
UUId	nsA:UUId	(1)	(1)
CedentReference	nsA:CedentReference	(1)	(1)
BrokerReference	nsA:BrokerReference	0	(1)
ServiceProviderReference	nsA:ServiceProviderReference	0	(1)
PlacingExchangeReference	nsA:PlacingExchangeReference	0	(1)
BrokerReference	nsA:BrokerReference	(1)	(1)
ServiceProviderReference	nsA:ServiceProviderReference	0	(1)
PlacingExchangeReference	nsA:PlacingExchangeReference	0	(1)
ServiceProviderReference	nsA:ServiceProviderReference	(1)	(1)
PlacingExchangeReference	nsA:PlacingExchangeReference	0	(1)
PlacingExchangeReference	nsA:PlacingExchangeReference	(1)	(1)
CedentReference	nsA:CedentReference	(1)	(1)
BrokerReference	nsA:BrokerReference	0	(1)
ServiceProviderReference	nsA:ServiceProviderReference	0	(1)
PlacingExchangeReference	nsA:PlacingExchangeReference	0	(1)
BrokerReference	nsA:BrokerReference	(1)	(1)
ServiceProviderReference	nsA:ServiceProviderReference	0	(1)
PlacingExchangeReference	nsA:PlacingExchangeReference	0	(1)
ServiceProviderReference	nsA:ServiceProviderReference	(1)	(1)
PlacingExchangeReference	nsA:PlacingExchangeReference	0	(1)
PlacingExchangeReference	nsA:PlacingExchangeReference	(1)	(1)
CreationDate	nsA:CreationDate	0	(1)
BordereauType	nsA:BordereauType	0	(1)
CommunicationChannel	nsA:CommunicationChannel	0	(1)
Extension	nsA:Extension	0	(1)

Derivation Tree:
	*ReferredBordereauType* nsA:ReferredBordereau

References:
	nsA:ReferredBordereau
