Documentation for Acord - Reinsurance & Large Commercial Standards Program
Definition Type: ComplexType
Name: SettlementDetailType
Namespace: http://www.ACORD.org/standards/Jv-Ins-Reinsurance/2008-1
Containing Schema: Jv-Ins-Reinsurance-2008-1.xsd
Abstract

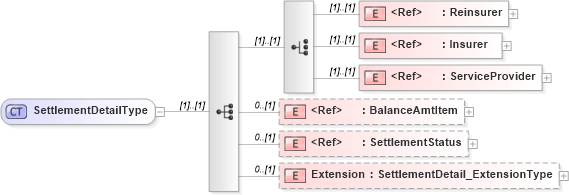

Collapse XSD Schema Diagram:
Drilldown into Extension in schema jv-ins-reinsurance-2008-1_xsd Drilldown into SettlementStatus in schema jv-ins-reinsurance-2008-1_xsd Drilldown into BalanceAmtItem in schema jv-ins-reinsurance-2008-1_xsd Drilldown into ServiceProvider in schema jv-ins-reinsurance-2008-1_xsd Drilldown into Insurer in schema jv-ins-reinsurance-2008-1_xsd Drilldown into Reinsurer in schema jv-ins-reinsurance-2008-1_xsdXSD Diagram of SettlementDetailType in schema jv-ins-reinsurance-2008-1_xsd (Acord - Reinsurance & Large Commercial Standards Program)
Collapse XSD Schema Code:
<xs:complexType name="SettlementDetailType">
    <xs:sequence>
        <xs:choice>
            <xs:element ref="Reinsurer" />
            <xs:element ref="Insurer" />
            <xs:element ref="ServiceProvider" />
        </xs:choice>
        <xs:element ref="BalanceAmtItem" minOccurs="0" />
        <xs:element ref="SettlementStatus" minOccurs="0" />
        <xs:element name="Extension" type="SettlementDetail_ExtensionType" minOccurs="0" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Reinsurer nsA:Reinsurer (1) (1)
Insurer nsA:Insurer (1) (1)
ServiceProvider nsA:ServiceProvider (1) (1)
BalanceAmtItem nsA:BalanceAmtItem 0 (1)
SettlementStatus nsA:SettlementStatus 0 (1)
Extension nsA:Extension 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:SettlementDetail
