Docs for schema item SettlementType in Acord - Reinsurance & Large Commercial Standards Program

Documentation for Acord - Reinsurance & Large Commercial Standards Program

Definition Type:	ComplexType
Name:	SettlementType
Namespace:	http://www.ACORD.org/standards/Jv-Ins-Reinsurance/2008-1
Containing Schema:	Jv-Ins-Reinsurance-2008-1.xsd
Abstract

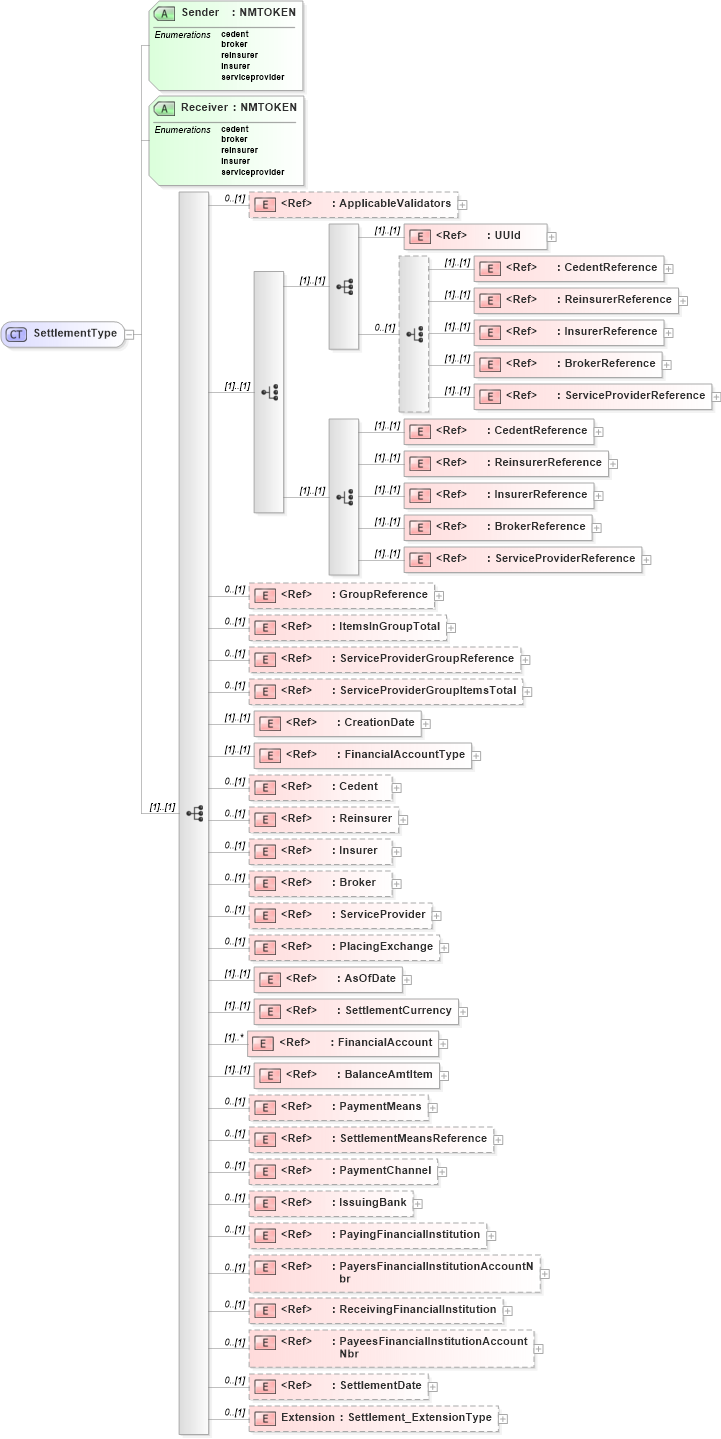

XSD Schema Diagram:

XSD Diagram of SettlementType in schema jv-ins-reinsurance-2008-1_xsd (Acord - Reinsurance & Large Commercial Standards Program)

XSD Schema Code:

<xs:complexType name="SettlementType">
    <xs:sequence>
        <xs:element ref="ac:ApplicableValidators" minOccurs="0" />
        <xs:choice>
            <xs:sequence>
                <xs:element ref="UUId" />
                <xs:choice minOccurs="0">
                    <xs:element ref="CedentReference" />
                    <xs:element ref="ReinsurerReference" />
                    <xs:element ref="InsurerReference" />
                    <xs:element ref="BrokerReference" />
                    <xs:element ref="ServiceProviderReference" />
                </xs:choice>
            </xs:sequence>
            <xs:choice>
                <xs:element ref="CedentReference" />
                <xs:element ref="ReinsurerReference" />
                <xs:element ref="InsurerReference" />
                <xs:element ref="BrokerReference" />
                <xs:element ref="ServiceProviderReference" />
            </xs:choice>
        </xs:choice>
        <xs:element ref="GroupReference" minOccurs="0" />
        <xs:element ref="ItemsInGroupTotal" minOccurs="0" />
        <xs:element ref="ServiceProviderGroupReference" minOccurs="0" />
        <xs:element ref="ServiceProviderGroupItemsTotal" minOccurs="0" />
        <xs:element ref="CreationDate" />
        <xs:element ref="FinancialAccountType" />
        <xs:element ref="Cedent" minOccurs="0" />
        <xs:element ref="Reinsurer" minOccurs="0" />
        <xs:element ref="Insurer" minOccurs="0" />
        <xs:element ref="Broker" minOccurs="0" />
        <xs:element ref="ServiceProvider" minOccurs="0" />
        <xs:element ref="PlacingExchange" minOccurs="0" />
        <xs:element ref="AsOfDate" />
        <xs:element ref="SettlementCurrency" />
        <xs:element ref="FinancialAccount" maxOccurs="unbounded" />
        <xs:element ref="BalanceAmtItem" />
        <xs:element ref="PaymentMeans" minOccurs="0" />
        <xs:element ref="SettlementMeansReference" minOccurs="0" />
        <xs:element ref="PaymentChannel" minOccurs="0" />
        <xs:element ref="IssuingBank" minOccurs="0" />
        <xs:element ref="PayingFinancialInstitution" minOccurs="0" />
        <xs:element ref="PayersFinancialInstitutionAccountNbr" minOccurs="0" />
        <xs:element ref="ReceivingFinancialInstitution" minOccurs="0" />
        <xs:element ref="PayeesFinancialInstitutionAccountNbr" minOccurs="0" />
        <xs:element ref="SettlementDate" minOccurs="0" />
        <xs:element name="Extension" type="Settlement_ExtensionType" minOccurs="0" />
    </xs:sequence>
    <xs:attribute name="Sender" use="required">
        <xs:simpleType>
            <xs:restriction base="xs:NMTOKEN">
                <xs:enumeration value="cedent" />
                <xs:enumeration value="broker" />
                <xs:enumeration value="reinsurer" />
                <xs:enumeration value="insurer" />
                <xs:enumeration value="serviceprovider" />
            </xs:restriction>
        </xs:simpleType>
    </xs:attribute>
    <xs:attribute name="Receiver" use="required">
        <xs:simpleType>
            <xs:restriction base="xs:NMTOKEN">
                <xs:enumeration value="cedent" />
                <xs:enumeration value="broker" />
                <xs:enumeration value="reinsurer" />
                <xs:enumeration value="insurer" />
                <xs:enumeration value="serviceprovider" />
            </xs:restriction>
        </xs:simpleType>
    </xs:attribute>
</xs:complexType>

Child Elements:

Name	Type	Min Occurs	Max Occurs
ApplicableValidators	ac:ApplicableValidators	0	(1)
UUId	nsA:UUId	(1)	(1)
CedentReference	nsA:CedentReference	(1)	(1)
ReinsurerReference	nsA:ReinsurerReference	(1)	(1)
InsurerReference	nsA:InsurerReference	(1)	(1)
BrokerReference	nsA:BrokerReference	(1)	(1)
ServiceProviderReference	nsA:ServiceProviderReference	(1)	(1)
CedentReference	nsA:CedentReference	(1)	(1)
ReinsurerReference	nsA:ReinsurerReference	(1)	(1)
InsurerReference	nsA:InsurerReference	(1)	(1)
BrokerReference	nsA:BrokerReference	(1)	(1)
ServiceProviderReference	nsA:ServiceProviderReference	(1)	(1)
GroupReference	nsA:GroupReference	0	(1)
ItemsInGroupTotal	nsA:ItemsInGroupTotal	0	(1)
ServiceProviderGroupReference	nsA:ServiceProviderGroupReference	0	(1)
ServiceProviderGroupItemsTotal	nsA:ServiceProviderGroupItemsTotal	0	(1)
CreationDate	nsA:CreationDate	(1)	(1)
FinancialAccountType	nsA:FinancialAccountType	(1)	(1)
Cedent	nsA:Cedent	0	(1)
Reinsurer	nsA:Reinsurer	0	(1)
Insurer	nsA:Insurer	0	(1)
Broker	nsA:Broker	0	(1)
ServiceProvider	nsA:ServiceProvider	0	(1)
PlacingExchange	nsA:PlacingExchange	0	(1)
AsOfDate	nsA:AsOfDate	(1)	(1)
SettlementCurrency	nsA:SettlementCurrency	(1)	(1)
FinancialAccount	nsA:FinancialAccount	(1)	unbounded
BalanceAmtItem	nsA:BalanceAmtItem	(1)	(1)
PaymentMeans	nsA:PaymentMeans	0	(1)
SettlementMeansReference	nsA:SettlementMeansReference	0	(1)
PaymentChannel	nsA:PaymentChannel	0	(1)
IssuingBank	nsA:IssuingBank	0	(1)
PayingFinancialInstitution	nsA:PayingFinancialInstitution	0	(1)
PayersFinancialInstitutionAccountNbr	nsA:PayersFinancialInstitutionAccountNbr	0	(1)
ReceivingFinancialInstitution	nsA:ReceivingFinancialInstitution	0	(1)
PayeesFinancialInstitutionAccountNbr	nsA:PayeesFinancialInstitutionAccountNbr	0	(1)
SettlementDate	nsA:SettlementDate	0	(1)
Extension	nsA:Extension	0	(1)

Child Attributes:

Name	Type	Default Value	Use
Sender	nsA:Sender		Required
Receiver	nsA:Receiver		Required

Derivation Tree:
	*SettlementType* nsA:Settlement

References:
	nsA:Settlement
