Docs for schema item TechAccountType in Acord - Reinsurance & Large Commercial Standards Program

Documentation for Acord - Reinsurance & Large Commercial Standards Program

Definition Type:	ComplexType
Name:	TechAccountType
Namespace:	http://www.ACORD.org/standards/Jv-Ins-Reinsurance/2008-1
Containing Schema:	Jv-Ins-Reinsurance-2008-1.xsd
Abstract

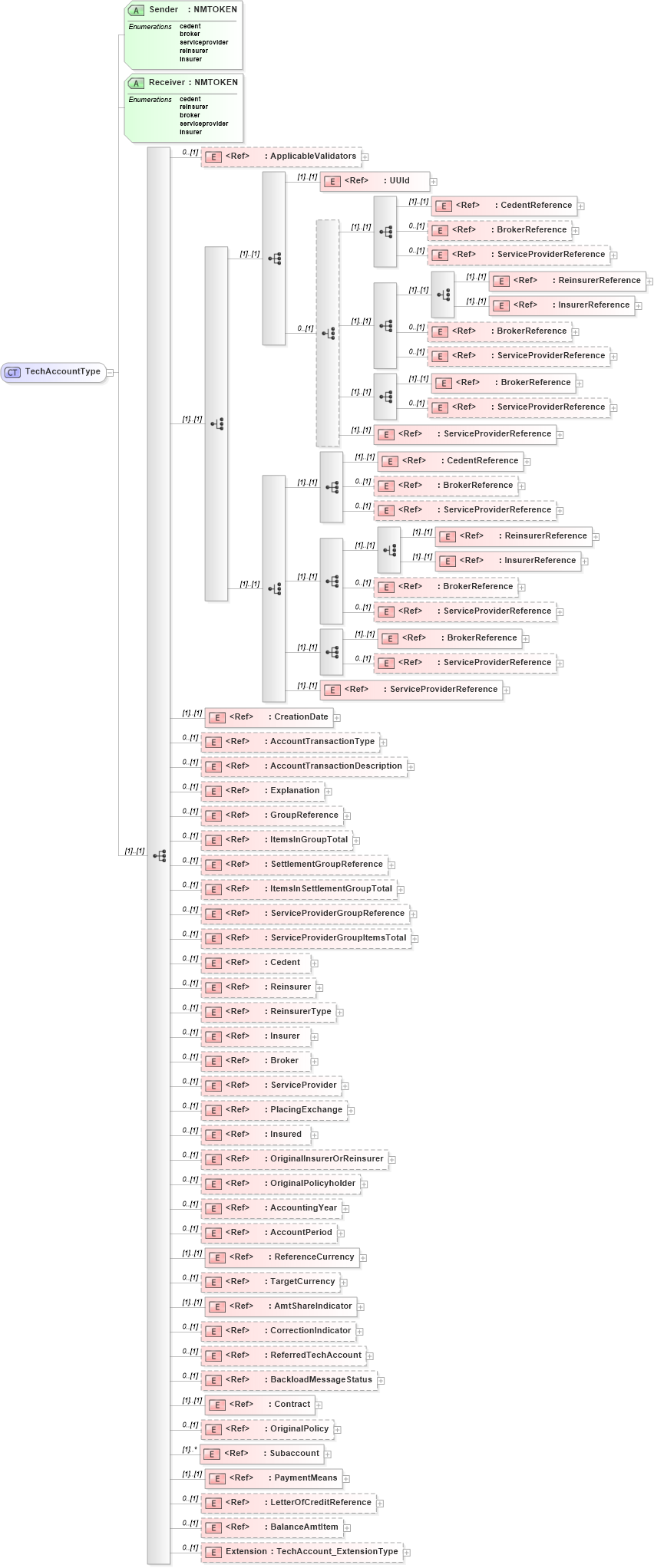

XSD Schema Diagram:

XSD Diagram of TechAccountType in schema jv-ins-reinsurance-2008-1_xsd (Acord - Reinsurance & Large Commercial Standards Program)

XSD Schema Code:

<xs:complexType name="TechAccountType">
    <xs:sequence>
        <xs:element ref="ac:ApplicableValidators" minOccurs="0" />
        <xs:choice>
            <xs:sequence>
                <xs:element ref="UUId" />
                <xs:choice minOccurs="0">
                    <xs:sequence>
                        <xs:element ref="CedentReference" />
                        <xs:element ref="BrokerReference" minOccurs="0" />
                        <xs:element ref="ServiceProviderReference" minOccurs="0" />
                    </xs:sequence>
                    <xs:sequence>
                        <xs:choice>
                            <xs:element ref="ReinsurerReference" />
                            <xs:element ref="InsurerReference" />
                        </xs:choice>
                        <xs:element ref="BrokerReference" minOccurs="0" />
                        <xs:element ref="ServiceProviderReference" minOccurs="0" />
                    </xs:sequence>
                    <xs:sequence>
                        <xs:element ref="BrokerReference" />
                        <xs:element ref="ServiceProviderReference" minOccurs="0" />
                    </xs:sequence>
                    <xs:element ref="ServiceProviderReference" />
                </xs:choice>
            </xs:sequence>
            <xs:choice>
                <xs:sequence>
                    <xs:element ref="CedentReference" />
                    <xs:element ref="BrokerReference" minOccurs="0" />
                    <xs:element ref="ServiceProviderReference" minOccurs="0" />
                </xs:sequence>
                <xs:sequence>
                    <xs:choice>
                        <xs:element ref="ReinsurerReference" />
                        <xs:element ref="InsurerReference" />
                    </xs:choice>
                    <xs:element ref="BrokerReference" minOccurs="0" />
                    <xs:element ref="ServiceProviderReference" minOccurs="0" />
                </xs:sequence>
                <xs:sequence>
                    <xs:element ref="BrokerReference" />
                    <xs:element ref="ServiceProviderReference" minOccurs="0" />
                </xs:sequence>
                <xs:element ref="ServiceProviderReference" />
            </xs:choice>
        </xs:choice>
        <xs:element ref="CreationDate" />
        <xs:element ref="AccountTransactionType" minOccurs="0" />
        <xs:element ref="AccountTransactionDescription" minOccurs="0" />
        <xs:element ref="Explanation" minOccurs="0" />
        <xs:element ref="GroupReference" minOccurs="0" />
        <xs:element ref="ItemsInGroupTotal" minOccurs="0" />
        <xs:element ref="SettlementGroupReference" minOccurs="0" />
        <xs:element ref="ItemsInSettlementGroupTotal" minOccurs="0" />
        <xs:element ref="ServiceProviderGroupReference" minOccurs="0" />
        <xs:element ref="ServiceProviderGroupItemsTotal" minOccurs="0" />
        <xs:element ref="Cedent" minOccurs="0" />
        <xs:element ref="Reinsurer" minOccurs="0" />
        <xs:element ref="ReinsurerType" minOccurs="0" />
        <xs:element ref="Insurer" minOccurs="0" />
        <xs:element ref="Broker" minOccurs="0" />
        <xs:element ref="ServiceProvider" minOccurs="0" />
        <xs:element ref="PlacingExchange" minOccurs="0" />
        <xs:element ref="Insured" minOccurs="0" />
        <xs:element ref="OriginalInsurerOrReinsurer" minOccurs="0" />
        <xs:element ref="OriginalPolicyholder" minOccurs="0" />
        <xs:element ref="AccountingYear" minOccurs="0" />
        <xs:element ref="AccountPeriod" minOccurs="0" />
        <xs:element ref="ReferenceCurrency" />
        <xs:element ref="TargetCurrency" minOccurs="0" />
        <xs:element ref="AmtShareIndicator" />
        <xs:element ref="CorrectionIndicator" minOccurs="0" />
        <xs:element ref="ReferredTechAccount" minOccurs="0" />
        <xs:element ref="BackloadMessageStatus" minOccurs="0" />
        <xs:element ref="Contract" />
        <xs:element ref="OriginalPolicy" minOccurs="0" />
        <xs:element ref="Subaccount" maxOccurs="unbounded" />
        <xs:element ref="PaymentMeans" />
        <xs:element ref="LetterOfCreditReference" minOccurs="0" />
        <xs:element ref="BalanceAmtItem" minOccurs="0" />
        <xs:element name="Extension" type="TechAccount_ExtensionType" minOccurs="0" />
    </xs:sequence>
    <xs:attribute name="Sender" use="required">
        <xs:simpleType>
            <xs:restriction base="xs:NMTOKEN">
                <xs:enumeration value="cedent" />
                <xs:enumeration value="broker" />
                <xs:enumeration value="serviceprovider" />
                <xs:enumeration value="reinsurer" />
                <xs:enumeration value="insurer" />
            </xs:restriction>
        </xs:simpleType>
    </xs:attribute>
    <xs:attribute name="Receiver" use="required">
        <xs:simpleType>
            <xs:restriction base="xs:NMTOKEN">
                <xs:enumeration value="cedent" />
                <xs:enumeration value="reinsurer" />
                <xs:enumeration value="broker" />
                <xs:enumeration value="serviceprovider" />
                <xs:enumeration value="insurer" />
            </xs:restriction>
        </xs:simpleType>
    </xs:attribute>
</xs:complexType>

Child Elements:

Name	Type	Min Occurs	Max Occurs
ApplicableValidators	ac:ApplicableValidators	0	(1)
UUId	nsA:UUId	(1)	(1)
CedentReference	nsA:CedentReference	(1)	(1)
BrokerReference	nsA:BrokerReference	0	(1)
ServiceProviderReference	nsA:ServiceProviderReference	0	(1)
ReinsurerReference	nsA:ReinsurerReference	(1)	(1)
InsurerReference	nsA:InsurerReference	(1)	(1)
BrokerReference	nsA:BrokerReference	0	(1)
ServiceProviderReference	nsA:ServiceProviderReference	0	(1)
BrokerReference	nsA:BrokerReference	(1)	(1)
ServiceProviderReference	nsA:ServiceProviderReference	0	(1)
ServiceProviderReference	nsA:ServiceProviderReference	(1)	(1)
CedentReference	nsA:CedentReference	(1)	(1)
BrokerReference	nsA:BrokerReference	0	(1)
ServiceProviderReference	nsA:ServiceProviderReference	0	(1)
ReinsurerReference	nsA:ReinsurerReference	(1)	(1)
InsurerReference	nsA:InsurerReference	(1)	(1)
BrokerReference	nsA:BrokerReference	0	(1)
ServiceProviderReference	nsA:ServiceProviderReference	0	(1)
BrokerReference	nsA:BrokerReference	(1)	(1)
ServiceProviderReference	nsA:ServiceProviderReference	0	(1)
ServiceProviderReference	nsA:ServiceProviderReference	(1)	(1)
CreationDate	nsA:CreationDate	(1)	(1)
AccountTransactionType	nsA:AccountTransactionType	0	(1)
AccountTransactionDescription	nsA:AccountTransactionDescription	0	(1)
Explanation	nsA:Explanation	0	(1)
GroupReference	nsA:GroupReference	0	(1)
ItemsInGroupTotal	nsA:ItemsInGroupTotal	0	(1)
SettlementGroupReference	nsA:SettlementGroupReference	0	(1)
ItemsInSettlementGroupTotal	nsA:ItemsInSettlementGroupTotal	0	(1)
ServiceProviderGroupReference	nsA:ServiceProviderGroupReference	0	(1)
ServiceProviderGroupItemsTotal	nsA:ServiceProviderGroupItemsTotal	0	(1)
Cedent	nsA:Cedent	0	(1)
Reinsurer	nsA:Reinsurer	0	(1)
ReinsurerType	nsA:ReinsurerType	0	(1)
Insurer	nsA:Insurer	0	(1)
Broker	nsA:Broker	0	(1)
ServiceProvider	nsA:ServiceProvider	0	(1)
PlacingExchange	nsA:PlacingExchange	0	(1)
Insured	nsA:Insured	0	(1)
OriginalInsurerOrReinsurer	nsA:OriginalInsurerOrReinsurer	0	(1)
OriginalPolicyholder	nsA:OriginalPolicyholder	0	(1)
AccountingYear	nsA:AccountingYear	0	(1)
AccountPeriod	nsA:AccountPeriod	0	(1)
ReferenceCurrency	nsA:ReferenceCurrency	(1)	(1)
TargetCurrency	nsA:TargetCurrency	0	(1)
AmtShareIndicator	nsA:AmtShareIndicator	(1)	(1)
CorrectionIndicator	nsA:CorrectionIndicator	0	(1)
ReferredTechAccount	nsA:ReferredTechAccount	0	(1)
BackloadMessageStatus	nsA:BackloadMessageStatus	0	(1)
Contract	nsA:Contract	(1)	(1)
OriginalPolicy	nsA:OriginalPolicy	0	(1)
Subaccount	nsA:Subaccount	(1)	unbounded
PaymentMeans	nsA:PaymentMeans	(1)	(1)
LetterOfCreditReference	nsA:LetterOfCreditReference	0	(1)
BalanceAmtItem	nsA:BalanceAmtItem	0	(1)
Extension	nsA:Extension	0	(1)

Child Attributes:

Name	Type	Default Value	Use
Sender	nsA:Sender		Required
Receiver	nsA:Receiver		Required

Derivation Tree:
	*TechAccountType* nsA:TechAccount

References:
	nsA:TechAccount
