Documentation for AdsML
Definition Type: Element
Name: AdMaterialDeliveryOrderStatusEnquiry
Namespace: http://www.adsml.org/adsmlmaterials/2.0
Containing Schema: AdsMLMaterials-2.0-PublicTypeLibrary-AS.xsd
Abstract

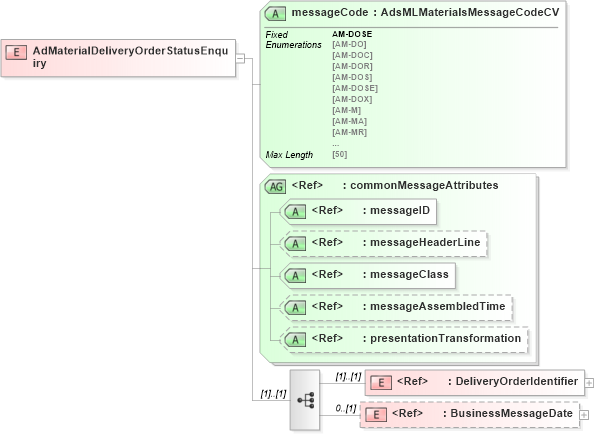

Collapse XSD Schema Diagram:
Drilldown into BusinessMessageDate in schema adsmltypelibrary-2_0-as_xsd Drilldown into DeliveryOrderIdentifier in schema adsmlmaterials-2_0-publictypelibrary-as_xsd Drilldown into presentationTransformation in schema adsmltypelibrary-2_0-as_xsd Drilldown into messageAssembledTime in schema adsmltypelibrary-2_0-as_xsd Drilldown into messageClass in schema adsmltypelibrary-2_0-as_xsd Drilldown into messageHeaderLine in schema adsmltypelibrary-2_0-as_xsd Drilldown into messageID in schema adsmltypelibrary-2_0-as_xsd Drilldown into commonMessageAttributes in schema adsmltypelibrary-2_0-as_xsd Drilldown into messageCode in schema adsmlmaterials-2_0-publictypelibrary-as_xsdXSD Diagram of AdMaterialDeliveryOrderStatusEnquiry in schema adsmlmaterials-2_0-publictypelibrary-as_xsd (AdsML)
Collapse XSD Schema Code:
<xs:element name="AdMaterialDeliveryOrderStatusEnquiry">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="DeliveryOrderIdentifier" />
            <xs:element ref="adsml:BusinessMessageDate" minOccurs="0" />
        </xs:sequence>
        <xs:attribute name="messageCode" type="AdsMLMaterialsMessageCodeCV" use="required" fixed="AM-DOSE" />
        <xs:attributeGroup ref="adsml:commonMessageAttributes" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DeliveryOrderIdentifier adsml-ma:DeliveryOrderIdentifier (1) (1)
BusinessMessageDate adsml:BusinessMessageDate 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
messageCode adsml-ma:messageCode Required
messageID adsml:messageID Required
messageHeaderLine adsml:messageHeaderLine (Optional)
messageClass adsml:messageClass Required
messageAssembledTime adsml:messageAssembledTime Optional
presentationTransformation adsml:presentationTransformation Optional
