Documentation for AdsML
Definition Type: Element
Name: AdministrativeResponse
Namespace: http://www.adsml.org/typelibrary/2.0
Containing Schema: AdsMLTypeLibrary-2.0-AS.xsd
Abstract

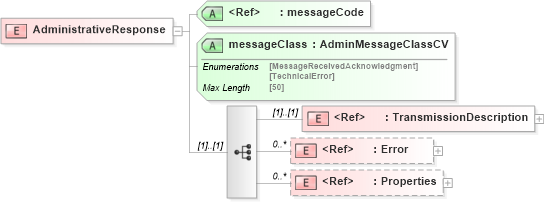

Collapse XSD Schema Diagram:
Drilldown into Properties in schema adsmltypelibrary-2_0-as_xsd Drilldown into Error in schema adsmltypelibrary-2_0-as_xsd Drilldown into TransmissionDescription in schema adsmltypelibrary-2_0-as_xsd Drilldown into messageClass in schema adsmltypelibrary-2_0-as_xsd Drilldown into messageCode in schema adsmltypelibrary-2_0-as_xsdXSD Diagram of AdministrativeResponse in schema adsmltypelibrary-2_0-as_xsd (AdsML)
Collapse XSD Schema Code:
<xs:element name="AdministrativeResponse">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="TransmissionDescription" />
            <xs:element ref="Error" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="Properties" minOccurs="0" maxOccurs="unbounded" />
        </xs:sequence>
        <xs:attribute ref="messageCode" use="required" />
        <xs:attribute name="messageClass" type="AdminMessageClassCV" use="required" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TransmissionDescription adsml:TransmissionDescription (1) (1)
Error adsml:Error 0 unbounded
Properties adsml:Properties 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
messageCode adsml:messageCode Required
messageClass adsml:messageClass Required
