Definition Type: Element
Name: AdOrder
Namespace: http://www.adsml.org/adsmlbookings/2.0
Containing Schema: AdsMLBookings-2.0-PublicTypeLibrary-AS.xsd
Abstract

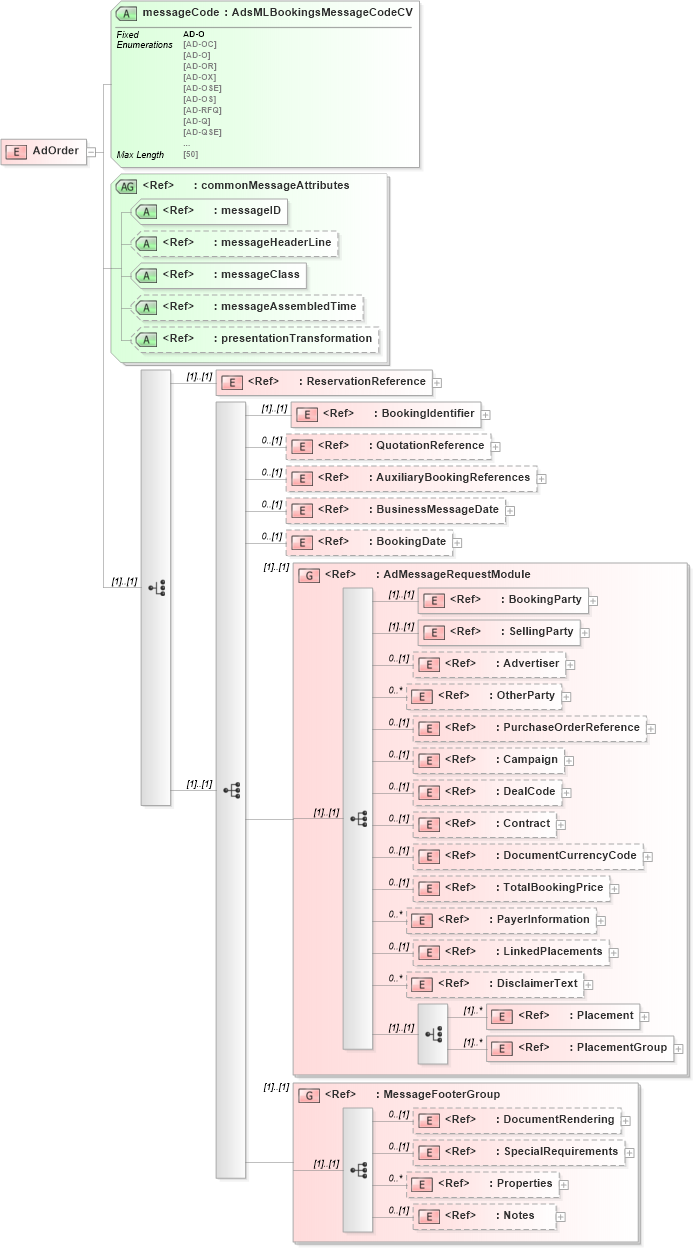

Collapse XSD Schema Diagram:
Drilldown into Notes in schema adsmltypelibrary-2_0-as_xsd Drilldown into Properties in schema adsmltypelibrary-2_0-as_xsd Drilldown into SpecialRequirements in schema adsmltypelibrary-2_0-as_xsd Drilldown into DocumentRendering in schema adsmltypelibrary-2_0-as_xsd Drilldown into MessageFooterGroup in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into PlacementGroup in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into Placement in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into DisclaimerText in schema adsmltypelibrary-2_0-as_xsd Drilldown into LinkedPlacements in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into PayerInformation in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into TotalBookingPrice in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into DocumentCurrencyCode in schema adsmltypelibrary-2_0-as_xsd Drilldown into Contract in schema adsmltypelibrary-2_0-as_xsd Drilldown into DealCode in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into Campaign in schema adsmltypelibrary-2_0-as_xsd Drilldown into PurchaseOrderReference in schema adsmltypelibrary-2_0-as_xsd Drilldown into OtherParty in schema adsmltypelibrary-2_0-as_xsd Drilldown into Advertiser in schema adsmltypelibrary-2_0-as_xsd Drilldown into SellingParty in schema adsmltypelibrary-2_0-as_xsd Drilldown into BookingParty in schema adsmltypelibrary-2_0-as_xsd Drilldown into AdMessageRequestModule in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into BookingDate in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into BusinessMessageDate in schema adsmltypelibrary-2_0-as_xsd Drilldown into AuxiliaryBookingReferences in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into QuotationReference in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into BookingIdentifier in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into ReservationReference in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into presentationTransformation in schema adsmltypelibrary-2_0-as_xsd Drilldown into messageAssembledTime in schema adsmltypelibrary-2_0-as_xsd Drilldown into messageClass in schema adsmltypelibrary-2_0-as_xsd Drilldown into messageHeaderLine in schema adsmltypelibrary-2_0-as_xsd Drilldown into messageID in schema adsmltypelibrary-2_0-as_xsd Drilldown into commonMessageAttributes in schema adsmltypelibrary-2_0-as_xsd Drilldown into messageCode in schema adsmlbookings-2_0-publictypelibrary-as_xsdXSD Diagram of AdOrder in schema adsmlbookings-2_0-publictypelibrary-as_xsd (AdsML)
Collapse XSD Schema Code:
<xs:element name="AdOrder">
    <xs:complexType>
        <xs:choice>
            <xs:element ref="ReservationReference" />
            <xs:sequence>
                <xs:element ref="BookingIdentifier" />
                <xs:element ref="QuotationReference" minOccurs="0" />
                <xs:element ref="AuxiliaryBookingReferences" minOccurs="0" />
                <xs:element ref="adsml:BusinessMessageDate" minOccurs="0" />
                <xs:element ref="BookingDate" minOccurs="0" />
                <xs:group ref="AdMessageRequestModule" />
                <xs:group ref="MessageFooterGroup" />
            </xs:sequence>
        </xs:choice>
        <xs:attribute name="messageCode" type="AdsMLBookingsMessageCodeCV" use="required" fixed="AD-O" />
        <xs:attributeGroup ref="adsml:commonMessageAttributes" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ReservationReference adsml-bo:ReservationReference (1) (1)
BookingIdentifier adsml-bo:BookingIdentifier (1) (1)
QuotationReference adsml-bo:QuotationReference 0 (1)
AuxiliaryBookingReferences adsml-bo:AuxiliaryBookingReferences 0 (1)
BusinessMessageDate adsml:BusinessMessageDate 0 (1)
BookingDate adsml-bo:BookingDate 0 (1)
BookingParty adsml:BookingParty (1) (1)
SellingParty adsml:SellingParty (1) (1)
Advertiser adsml:Advertiser 0 (1)
OtherParty adsml:OtherParty 0 unbounded
PurchaseOrderReference adsml:PurchaseOrderReference 0 (1)
Campaign adsml:Campaign 0 (1)
DealCode adsml-bo:DealCode 0 (1)
Contract adsml:Contract 0 (1)
DocumentCurrencyCode adsml:DocumentCurrencyCode 0 (1)
TotalBookingPrice adsml-bo:TotalBookingPrice 0 (1)
PayerInformation adsml-bo:PayerInformation 0 unbounded
LinkedPlacements adsml-bo:LinkedPlacements 0 (1)
DisclaimerText adsml:DisclaimerText 0 unbounded
Placement adsml-bo:Placement (1) unbounded
PlacementGroup adsml-bo:PlacementGroup (1) unbounded
DocumentRendering adsml:DocumentRendering 0 (1)
SpecialRequirements adsml:SpecialRequirements 0 (1)
Properties adsml:Properties 0 unbounded
Notes adsml:Notes 0 (1)
<xs:group> adsml-bo:AdMessageRequestModule (1) (1)
<xs:group> adsml-bo:MessageFooterGroup (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
messageCode adsml-bo:messageCode Required
messageID adsml:messageID Required
messageHeaderLine adsml:messageHeaderLine (Optional)
messageClass adsml:messageClass Required
messageAssembledTime adsml:messageAssembledTime Optional
presentationTransformation adsml:presentationTransformation Optional
